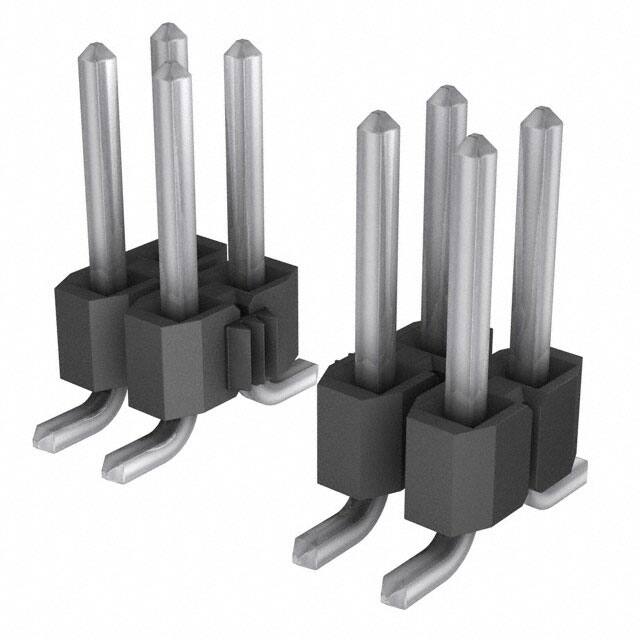

TSM-105-01-T-DV-P-TR

Specifications

Reference Standard

UL

Filter Feature

NO

Reliability

COMMERCIAL

Mating Contact Pitch

0.1 inch

Depth

5.08mm

Shrouding

Unshrouded

Contact Materials

Phosphor Bronze

Number Of Conductors

ONE

Gender

Male

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Polymer

Contact Finish Mating

Tin

Contact Shape

Square

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

475V

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Sıra Sayısı

2

Montaj Tipi

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

HTS Kodu

8536.69.40.40

Kurşunsuz

Lead Free

Mil Conformance

NO

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~105°C

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Max Current Rating

7A

Contact Lengthmating

0.230 5.84mm

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Total Number Of Contacts

10

Additional Feature

POLARIZED

Orientation

Straight

Montaj

Surface Mount

Insulation Height

0.100 2.54mm

Reach Svhc

No SVHC

Uzunluk

12.7mm
