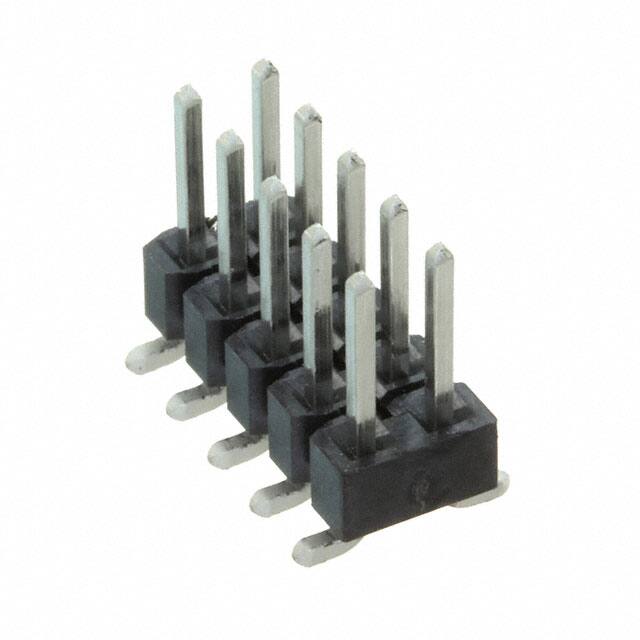

TSM-105-01-T-DV

Specifications

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Total Number Of Contacts

10

Orientation

Vertical

Insulation Height

0.100 2.54mm

Reach Svhc

No SVHC

Uzunluk

12.7mm

RoHS Durumu

ROHS3 Compliant

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Contact Type

Male Pin

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Housing Color

Black

Pitch Mating

0.100 2.54mm

Seri

TSM

Yayın Yılı

2014

Din Conformance

NO

Pozisyon Sayısı

10

Mixed Contacts

NO

Terminal

Solder

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header

JESD-609 Kodu

e3

Reference Standard

UL

Ul Flammability Code

94V-0

Filter Feature

NO

Reliability

COMMERCIAL

Mating Contact Pitch

0.1 inch

Depth

5.08mm

Shrouding

Unshrouded

Contact Materials

Phosphor Bronze

Number Of Conductors

ONE

Gender

Male

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Polymer

Contact Finish Mating

Tin

Contact Shape

Square
