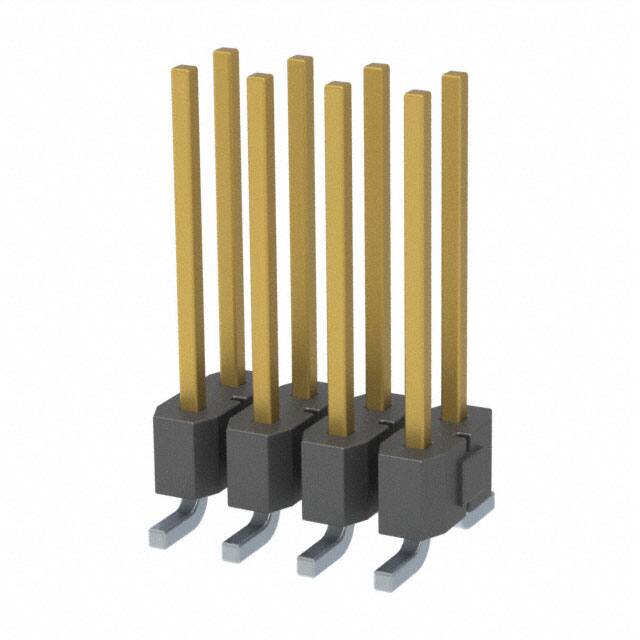

TSM-104-03-L-DV

Specifications

Terminal

Solder

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header

JESD-609 Kodu

e3

Din Conformance

NO

Pozisyon Sayısı

8

Mixed Contacts

NO

Seri

TSM

Yayın Yılı

2012

Insulation Color

Black

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Uzunluk

10.16mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Contact Type

Male Pin

Insulation Height

0.100 2.54mm

Reach Svhc

No SVHC

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Total Number Of Contacts

8

Contact Finish Thickness Mating

10.0μin 0.25μm

Orientation

Straight

Plating Thickness

10μin

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Max Current Rating

7A

Contact Lengthmating

0.420 10.67mm

Mil Conformance

NO

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~125°C

Montaj Tipi

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

Kurşunsuz

Lead Free

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Polymer
