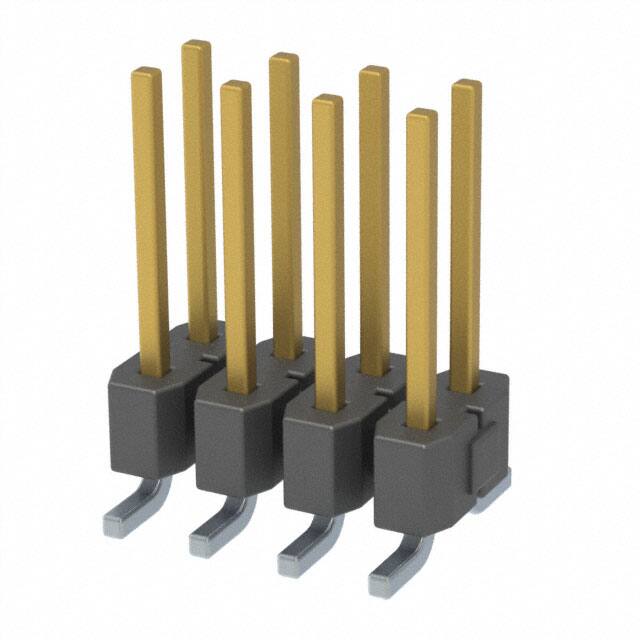

TSM-104-02-S-DV

Specifications

Reach Svhc

No SVHC

Insulation Height

0.100 2.54mm

Number Of Pcb Rows

2

Option

GENERAL PURPOSE

Orientation

Straight

Contact Finish Thickness Mating

30.0μin 0.76μm

Total Number Of Contacts

8

Mounting Option1

LOCKING

Kurşunsuz Kodu

yes

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Uzunluk

10.16mm

Contact Type

Male Pin

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board or Cable

Seri

TSM

Insulation Color

Black

Yayın Yılı

2012

Pitch Mating

0.100 2.54mm

Connector Type

Header

Fabrika Tedarik Süresi

3 Weeks

ECCN Kodu

EAR99

Terminal

Solder

JESD-609 Kodu

e3

Pozisyon Sayısı

8

Din Conformance

NO

Mixed Contacts

NO

Reliability

COMMERCIAL

Mating Contact Pitch

0.1 inch

Reference Standard

UL

Filter Feature

NO

Ul Flammability Code

94V-0

Contact Materials

Phosphor Bronze

Shrouding

Unshrouded

Gender

Male

Number Of Conductors

ONE

Depth

5.08mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Surface Mount

Kurşunsuz

Lead Free
