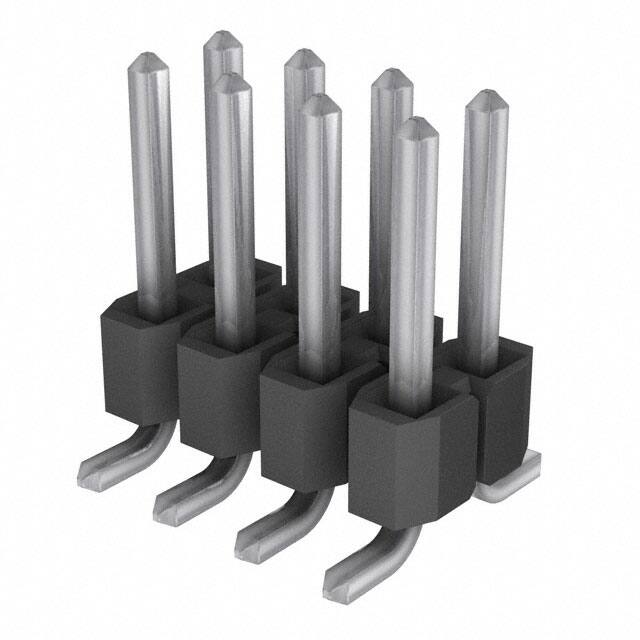

TSM-104-01-T-DV

Specifications

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Max Current Rating

7A

Contact Lengthmating

0.230 5.84mm

Radyasyon Dayanımı

No

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~105°C

Montaj Tipi

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

Kurşunsuz

Lead Free

Contact Finish Mating

Tin

Material Flammability Rating

UL94 V-0

Number Of Positions Loaded

All

Housing Material

Polymer

Contact Shape

Square

Fastening Type

Push-Pull

Iec Conformance

NO

Ambalaj

Tube

Max Voltage Rating Ac

475V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Sıra Sayısı

2

Contact Materials

Phosphor Bronze

Shrouding

Unshrouded

Gender

Male

Number Of Conductors

ONE

Depth

5.08mm

Reliability

COMMERCIAL

Mating Contact Pitch

0.1 inch

Reference Standard

UL

Filter Feature

NO

Ul Flammability Code

94V-0

Connector Type

Header

Fabrika Tedarik Süresi

3 Weeks

Terminal

Solder

JESD-609 Kodu

e3

Pozisyon Sayısı

8

Din Conformance

NO

Mixed Contacts

NO

Seri

TSM

Yayın Yılı

2012
