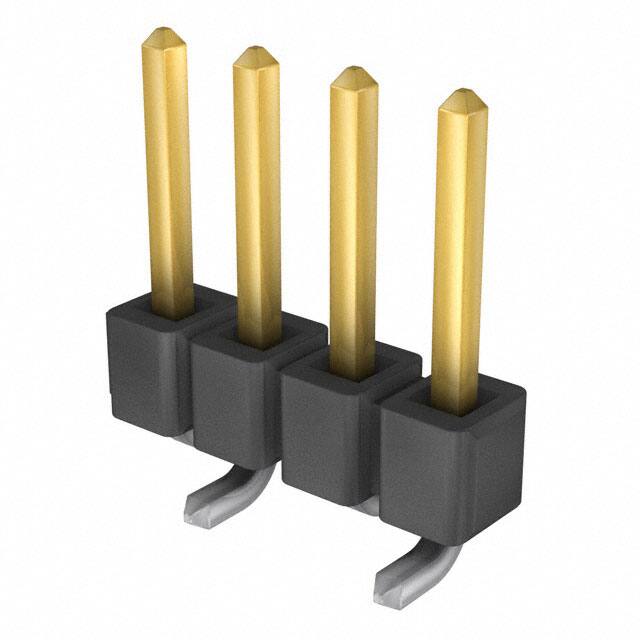

TSM-104-01-L-SV-P-TR

Specifications

Option

GENERAL PURPOSE

Total Number Of Contacts

4

Contact Finish Thickness Mating

10.0μin 0.25μm

Orientation

Straight

Additional Feature

E.L.P.

Reach Svhc

No SVHC

Montaj

Surface Mount

Insulation Height

0.100 2.54mm

Manufacturer Package Identifier

TSM-104-01-L-SV-P-TR

Özellikler

Pick and Place

RoHS Durumu

ROHS3 Compliant

Uzunluk

10.16mm

Contact Finish Post

Tin

Style

Board to Board or Cable

Contact Type

Male Pin

Yükseklik

10.2362mm

Kurşunsuz Kodu

yes

Nominal Gerilim

475V

Housing Color

Black

Pitch Mating

0.100 2.54mm

Seri

TSM

Yayın Yılı

2014

Din Conformance

NO

Pozisyon Sayısı

4

Mixed Contacts

NO

ECCN Kodu

EAR99

Terminal

Solder

Connector Type

Header

Fabrika Tedarik Süresi

3 Weeks

JESD-609 Kodu

e3

Akım Değeri

5.4A

Reference Standard

UL

Filter Feature

NO

Reliability

COMMERCIAL

Depth

2.54mm

Shrouding

Unshrouded

Contact Materials

Phosphor Bronze

Number Of Conductors

ONE

Gender

Male

Housing Material

Polymer
