Volume pricing
- 1+ pcs$1.12
- 10+ pcs$1.06
- 100+ pcs$1.00
- 500+ pcs$0.94
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

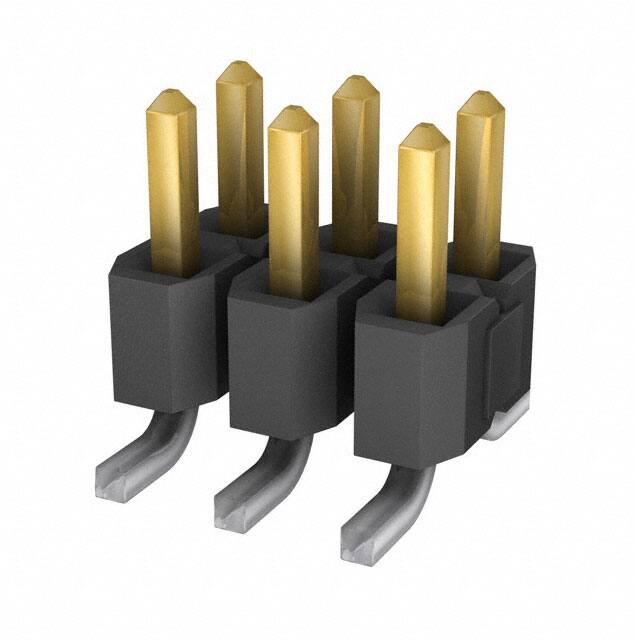

Specifications
- Seri
- TSM
- Yayın Yılı
- 2014
- Insulation Color
- Black
- Pitch Mating
- 0.100 2.54mm
- Connector Type
- Header
- ECCN Kodu
- EAR99
- Terminal
- Solder
- JESD-609 Kodu
- e3
- Pozisyon Sayısı
- 6
- Reach Svhc
- No SVHC
- Insulation Height
- 0.100 2.54mm
- Number Of Pcb Rows
- 2
- Orientation
- Straight
- Additional Feature
- TAPE AND REEL
- Contact Finish Thickness Mating
- 30.0μin 0.76μm
- Total Number Of Contacts
- 6
- Mounting Option1
- LOCKING
- Kurşunsuz Kodu
- yes
- Contact Finish Post
- Tin
- RoHS Durumu
- ROHS3 Compliant
- Uzunluk
- 7.62mm
- Contact Type
- Male Pin
- Row Spacing Mating
- 0.100 (2.54mm)
- Style
- Board to Board or Cable
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Montaj Tipi
- Surface Mount
- Kurşunsuz
- Lead Free
- Contact Finish Mating
- Gold
- Housing Material
- Polymer
- Number Of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Sıra Sayısı
- 2
- Ambalaj
- Tape & Reel (TR)
- Max Voltage Rating Ac
- 475V
- Fastening Type
- Push-Pull
- Contact Shape
- Square
- Pcb Contact Pattern
- RECTANGULAR
- Plating Thickness
- 30μin
- Contact Lengthmating
- 0.120 3.05mm
- Max Current Rating
- 7A
