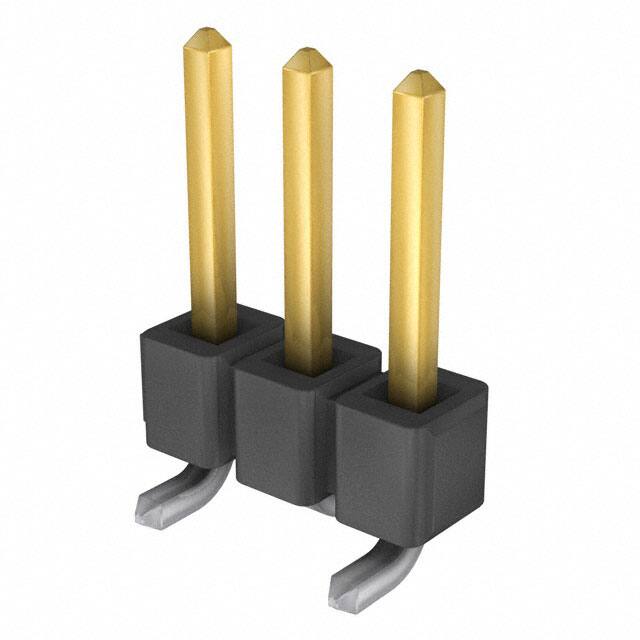

TSM-103-01-L-SV-P-TR

Specifications

Sıra Sayısı

1

Iec Conformance

NO

Ambalaj

Tape & Reel (TR)

Max Voltage Rating Ac

475V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Push-Pull

Contact Shape

Square

Housing Material

Polymer

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Gold

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Surface Mount

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Radyasyon Dayanımı

No

Contact Lengthmating

0.230 5.84mm

Max Current Rating

7A

Parça Durumu

Active

Pcb Contact Pattern

STAGGERED

Filter Feature

NO

Reference Standard

UL

Reliability

COMMERCIAL

Depth

2.54mm

Number Of Conductors

ONE

Gender

Male

Shrouding

Unshrouded

Contact Materials

Phosphor Bronze

Pitch Mating

0.100 2.54mm

Yayın Yılı

2014

Seri

TSM

Mixed Contacts

NO

Din Conformance

NO

Pozisyon Sayısı

3

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Terminal

Solder

Connector Type

Header

Fabrika Tedarik Süresi

3 Weeks
