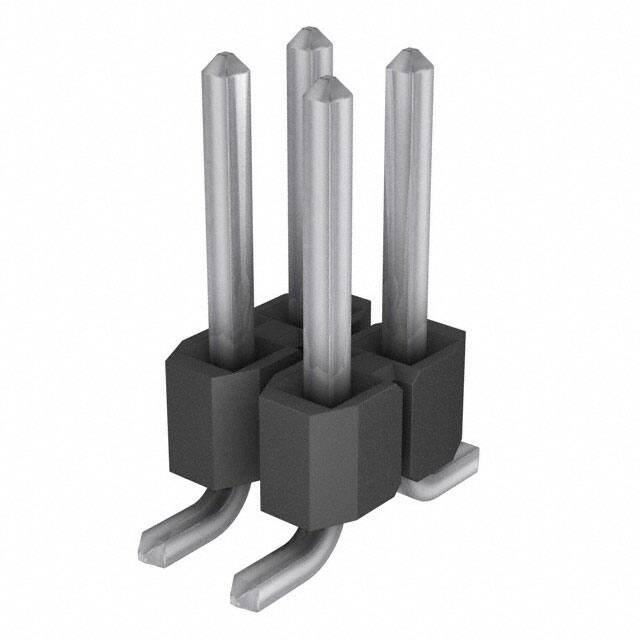

TSM-102-01-T-DV-P-TR

Specifications

Parça Durumu

Active

Max Current Rating

7A

Contact Lengthmating

0.230 5.84mm

Pcb Contact Pattern

RECTANGULAR

Çalışma Sıcaklığı

-55°C~105°C

Radyasyon Dayanımı

No

Mil Conformance

NO

Kurşunsuz

Lead Free

Montaj Tipi

Surface Mount

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Shape

Square

Fastening Type

Push-Pull

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

475V

Ambalaj

Tape & Reel (TR)

Iec Conformance

NO

Sıra Sayısı

2

Contact Finish Mating

Tin

Number Of Positions Loaded

All

Material Flammability Rating

UL94 V-0

Housing Material

Polymer

Gender

Male

Number Of Conductors

ONE

Contact Materials

Phosphor Bronze

Shrouding

Unshrouded

Depth

5.08mm

Mating Contact Pitch

0.1 inch

Reliability

COMMERCIAL

Filter Feature

NO

Reference Standard

UL

JESD-609 Kodu

e3

Fabrika Tedarik Süresi

4 Weeks

Connector Type

Header

Terminal

Solder

Mixed Contacts

NO

Pozisyon Sayısı

4

Din Conformance

NO

Yayın Yılı

2007

Seri

TSM

Pitch Mating

0.100 2.54mm
