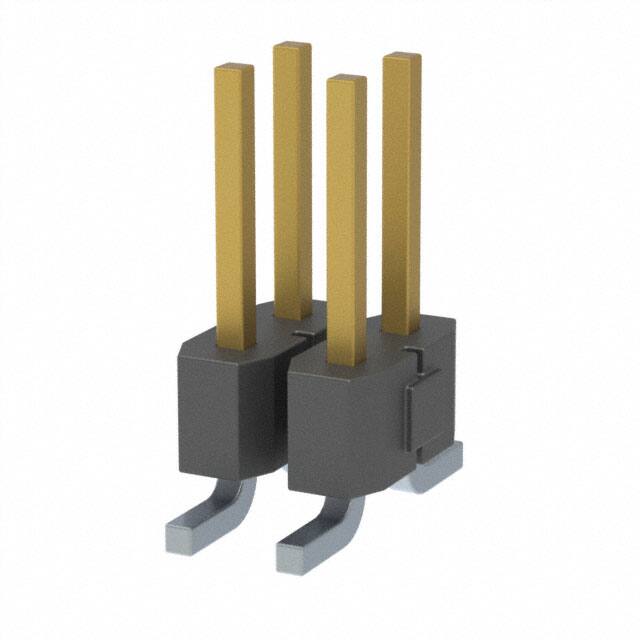

TSM-102-01-L-DV-P-TR

Specifications

Mixed Contacts

NO

Din Conformance

NO

Pozisyon Sayısı

4

JESD-609 Kodu

e3

Terminal

Solder

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header

Pitch Mating

0.100 2.54mm

Yayın Yılı

2014

Insulation Color

Black

Seri

TSM

Style

Board to Board or Cable

Row Spacing Mating

0.100 (2.54mm)

Contact Type

Male Pin

Özellikler

Pick and Place

RoHS Durumu

ROHS3 Compliant

Uzunluk

5.08mm

Contact Finish Post

Tin

Kurşunsuz Kodu

yes

Mounting Option1

LOCKING

Total Number Of Contacts

4

Contact Finish Thickness Mating

10.0μin 0.25μm

Additional Feature

POLARIZED

Orientation

Straight

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Insulation Height

0.100 2.54mm

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Radyasyon Dayanımı

No

Parça Durumu

Active

Max Current Rating

7A

Contact Lengthmating

0.230 5.84mm

Plating Thickness

10μin

Pcb Contact Pattern

RECTANGULAR

Iec Conformance

NO

Ambalaj

Tape & Reel (TR)

Max Voltage Rating Ac

475V
