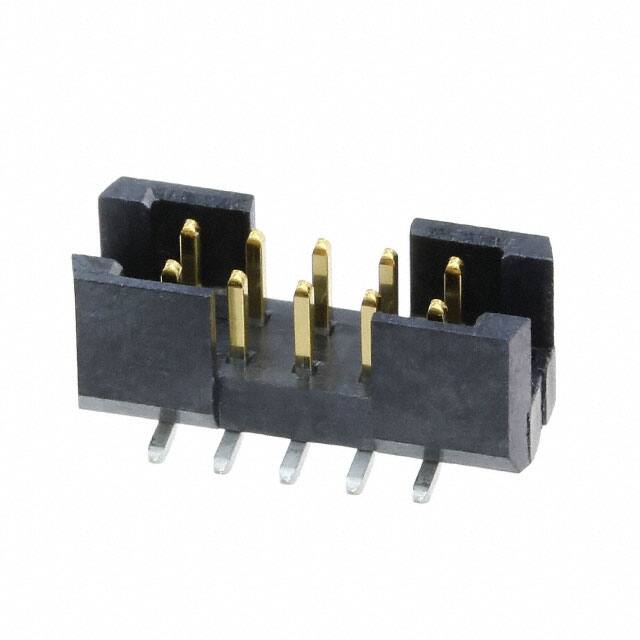

TSH-105-01-L-DV

Specifications

Mating Contact Pitch

0.079 inch

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Type

Male Pin

Fastening Type

Push-Pull

Iec Conformance

NO

Connector Type

Header

Ambalaj

Tube

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Finish Post

Tin

Number Of Positions Loaded

All

Montaj

Surface Mount

Terminal

Solder

Mixed Contacts

NO

Gender

Male

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.210 5.33mm

Contact Lengthmating

0.126 3.20mm

Parça Durumu

Active

Yayın Yılı

2002

Number Of Conductors

ONE

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Option

GENERAL PURPOSE

Filter Feature

NO

Fabrika Tedarik Süresi

3 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Pozisyon Sayısı

10

Insulation Color

Black

Style

Board to Board

Shrouding

Shrouded - 3 Wall

RoHS Durumu

ROHS3 Compliant

Contact Shape

Square

Row Spacing Mating

0.079 (2.00mm)

Pitch Mating

0.079 2.00mm

Reliability

COMMERCIAL

Reach Svhc

No SVHC

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Radyasyon Dayanımı

No
