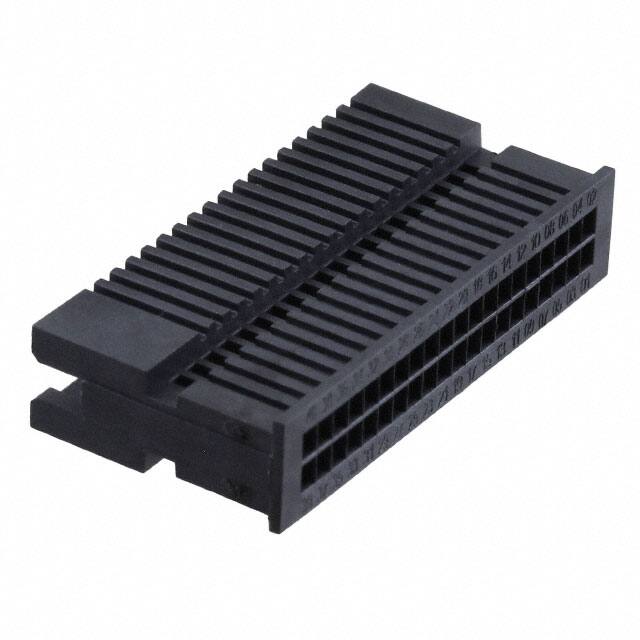

TSDF-20-D-S

Specifications

Mil Conformance

NO

Radyasyon Dayanımı

No

Contact Gender

FEMALE

Row Spacing

0.050 (1.27mm)

Orientation

Straight

Reference Standard

UL

Pozisyon Sayısı

40

RoHS Durumu

ROHS3 Compliant

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Seri

Tiger Eye™ TSDF

Contact Type

Male Pin

Termination Type

WIRE

Insulation Resistance

5000000000Ohm

Contact Design

PREASSEM CONN

JESD-609 Kodu

e4

Reliability

COMMERCIAL

Renk

Black

Durability

100 Cycles

Pitch

0.050 1.27mm

Contact Resistance

15mOhm

Total Number Of Contacts

40

Montaj Tipi

Free Hanging (In-Line)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Din Conformance

NO

Sıra Sayısı

2

Mounting Option1

LOCKING

Note

Contacts Not Included

Contact Finish Mating

GOLD OVER NICKEL (50)

Contact Materials

BERYLLIUM COPPER

Operating Temperature Min

-55°C

Contact Termination

Crimp

Ambalaj

Bulk

Parça Durumu

Active

Filter Feature

NO

Iec Conformance

NO

Connector Type

BOARD CONNECTOR

Body Length Or Diameter

1.1 inch

Option

GENERAL PURPOSE
