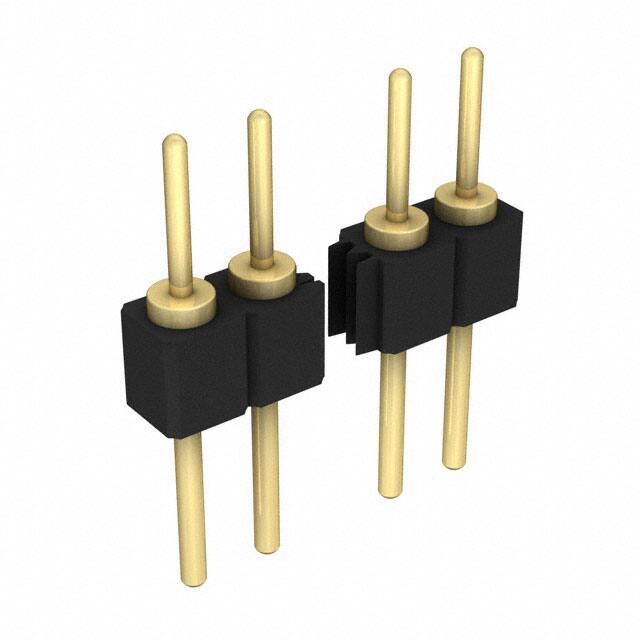

TS-110-G-A

Specifications

Option

GENERAL PURPOSE

Reference Standard

UL

Akım Değeri

1A

Number Of Positions Loaded

All

Contact Finish Thickness Mating

20.0μin 0.51μm

Overall Contact Length

0.477 12.12mm

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Insulation Materials

Polyester, Glass Filled

Shrouding

Unshrouded

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Male

Orientation

Straight

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Lead Pitch

2.54mm

Depth

2.54mm

Sıra Sayısı

1

Style

Board to Board

Max Current Rating

1A

Housing Material

Polyester

Housing Color

Black

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Seri

TS

Pozisyon Sayısı

10

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole

Filter Feature

NO

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Mil Conformance

NO

Terminal

Solder

Number Of Conductors

ONE

Contact Finish Mating

Gold

Contact Length Post

0.156 3.96mm

Insulation Height

0.100 2.54mm

Çalışma Sıcaklığı

-55°C~125°C
