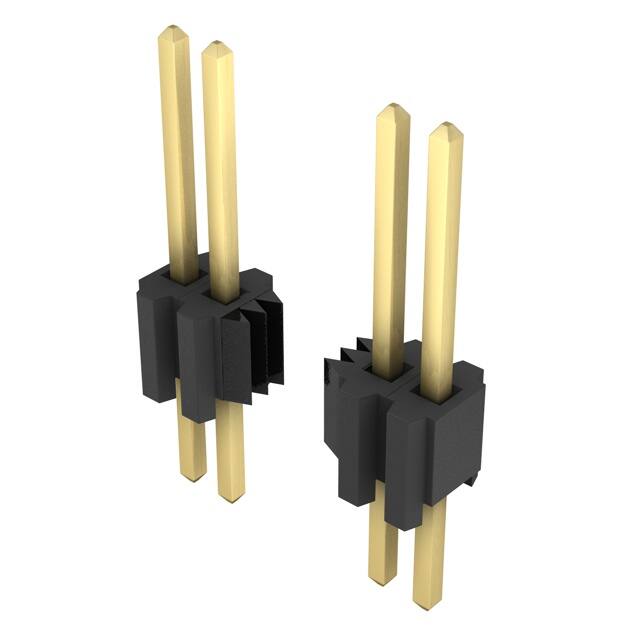

TMS-125-01-G-S

Specifications

Reach Svhc

No SVHC

Iec Conformance

NO

Style

Board to Board

Contact Type

Male Pin

Lead Pitch

1.27mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2003

Uzunluk

31.75mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

1

Housing Material

Polymer

Fabrika Tedarik Süresi

3 Weeks

Sıra Sayısı

1

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Contact Lengthmating

0.230 5.84mm

Din Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Length Post

0.120 3.05mm

Montaj

Through Hole

Mating Contact Pitch

0.05 inch

Insulation Height

0.100 2.54mm

Filter Feature

NO

Yükseklik

8.38mm

Contact Finish Mating

Gold

Fastening Type

Push-Pull

Montaj Tipi

Through Hole

Orientation

Straight

Parça Durumu

Active

Terminal

Solder

Pitch Mating

0.050 1.27mm

Pozisyon Sayısı

25

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Housing Color

Black

Kurşunsuz

Lead Free

Overall Contact Length

0.450 11.43mm

Reliability

COMMERCIAL

Contact Shape

Square

Shrouding

Unshrouded
