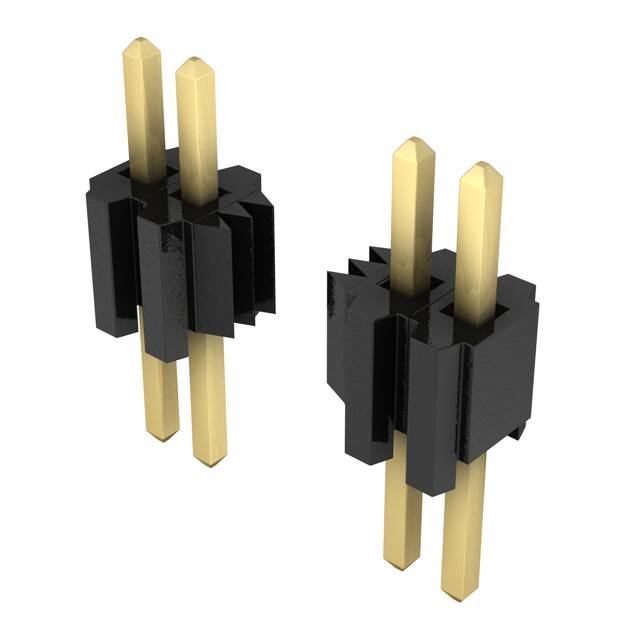

TMS-112-02-G-S

Specifications

Iec Conformance

NO

Reach Svhc

No SVHC

Contact Type

Male Pin

Style

Board to Board

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2012

Nem Hassasiyeti (MSL)

1 (Unlimited)

Uzunluk

15.24mm

Fabrika Tedarik Süresi

4 Weeks

Housing Material

Polymer

Insulation Color

Black

Number Of Pcb Rows

1

Sıra Sayısı

1

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Contact Lengthmating

0.100 2.54mm

Din Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Contact Length Post

0.120 3.05mm

Mating Contact Pitch

0.05 inch

Filter Feature

NO

Insulation Height

0.100 2.54mm

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Montaj Tipi

Through Hole

Orientation

Straight

Parça Durumu

Active

Terminal

Solder

Pitch Mating

0.050 1.27mm

Overall Contact Length

0.320 8.13mm

Pozisyon Sayısı

12

Radyasyon Dayanımı

No

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Contact Shape

Square

Seri

TMS

Shrouding

Unshrouded

Insulation Materials

Liquid Crystal Polymer (LCP)

Kurşunsuz Kodu

yes

Mil Conformance

NO
