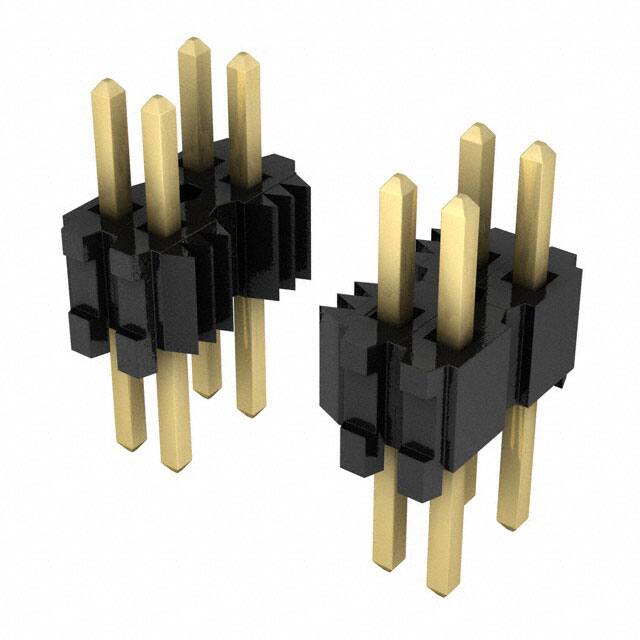

TMS-110-02-G-D

Specifications

Contact Finish Thickness Mating

10.0μin 0.25μm

Yayın Yılı

2012

Iec Conformance

NO

Reach Svhc

No SVHC

Style

Board to Board

Contact Type

Male Pin

Contact Materials

Phosphor Bronze

Mixed Contacts

NO

Plating Thickness

10μin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Black

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

3 Weeks

Body Breadth

0.196 inch

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch

Insulation Height

0.100 2.54mm

Filter Feature

NO

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Contact Lengthmating

0.100 2.54mm

Din Conformance

NO

Contact Finish Thickness Post

3.00μin 0.076μm

Row Spacing Mating

0.100 (2.54mm)

Contact Length Post

0.120 3.05mm

Montaj

Through Hole

Parça Durumu

Active

Montaj Tipi

Through Hole

Pitch Mating

0.050 1.27mm

RoHS Durumu

ROHS3 Compliant

Radyasyon Dayanımı

No

Pozisyon Sayısı

20

Overall Contact Length

0.320 8.13mm

Terminal

Solder

Shrouding

Unshrouded

Seri

TMS

Insulation Materials

Liquid Crystal Polymer (LCP)

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Ambalaj

Tube
