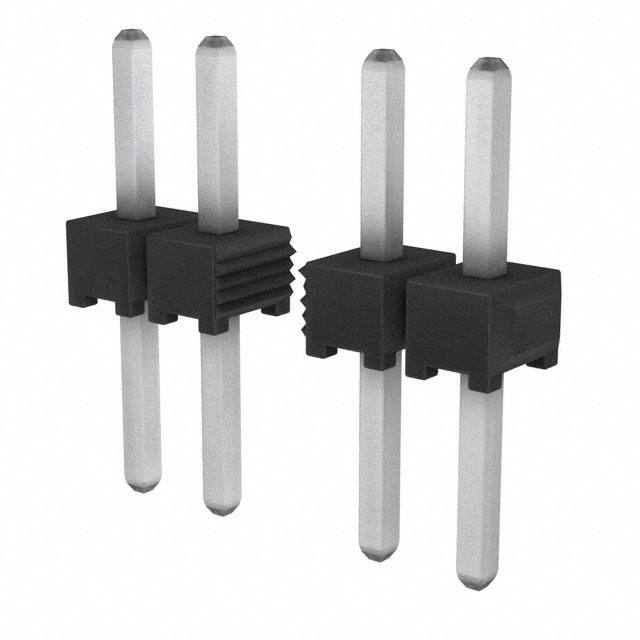

TMM-150-01-T-S

Specifications

Current Rating Amps

3.2A per Contact

Number Of Conductors

ONE

Housing Material

Polymer

Ambalaj

Tube

Iec Conformance

NO

Orientation

Straight

Mil Conformance

NO

Seri

TMM

Pozisyon Sayısı

50

Mating Contact Pitch

0.079 inch

Contact Type

Male Pin

Option

GENERAL PURPOSE

Pitch Mating

0.079 2.00mm

Reliability

COMMERCIAL

Terminal

Solder

Contact Length Post

0.138 3.50mm

Max Current Rating

3.9A

Shrouding

Unshrouded

Kurşunsuz

Lead Free

Gender

Male

Genişlik

1.97mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Lengthmating

0.126 3.20mm

Fabrika Tedarik Süresi

3 Weeks

Number Of Pcb Rows

1

Parça Durumu

Active

Sıra Sayısı

1

Housing Color

Black

Style

Board to Board or Cable

Connector Type

Header

Terminal Adımı

2mm

Montaj Tipi

Through Hole

Insulation Height

0.059 1.50mm

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-55°C~105°C

Depth

1.97mm

Reach Svhc

No SVHC

Nem Hassasiyeti (MSL)

1 (Unlimited)
