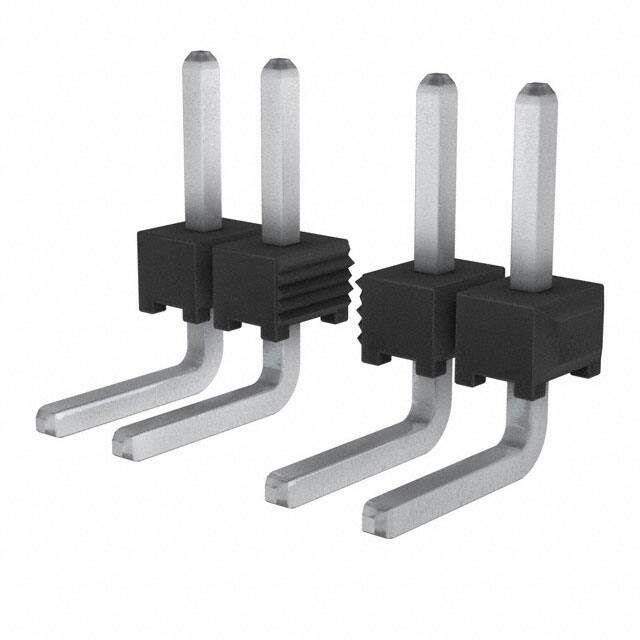

TMM-135-01-T-S-RA

Specifications

Terminal Adımı

2mm

Montaj Tipi

Through Hole, Right Angle

Insulation Height

0.079 2.00mm

Style

Board to Board or Cable

Connector Type

Header

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Sıra Sayısı

1

Fabrika Tedarik Süresi

3 Weeks

Contact Lengthmating

0.126 3.20mm

Mounting Option1

LOCKING

Number Of Pcb Rows

2

Shrouding

Unshrouded

Max Current Rating

3.9A

Insulation Materials

Liquid Crystal Polymer (LCP)

Gender

Male

Kurşunsuz

Lead Free

Reliability

COMMERCIAL

Pitch Mating

0.079 2.00mm

Contact Length Post

0.120 3.05mm

Terminal

Solder

Pozisyon Sayısı

35

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mating Contact Pitch

0.079 inch

Ambalaj

Tube

Housing Material

Polymer

Mating Contact Row Spacing

0.079 inch

Seri

TMM

Orientation

Right Angle

Iec Conformance

NO

Mil Conformance

NO

Number Of Conductors

ONE

Current Rating Amps

3.2A per Contact

Pcb Contact Row Spacing

2.0066 mm

Fastening Type

Push-Pull

Voltage Rated Ac

250V

Max Voltage Rating Ac

500V

Uzunluk

70mm
