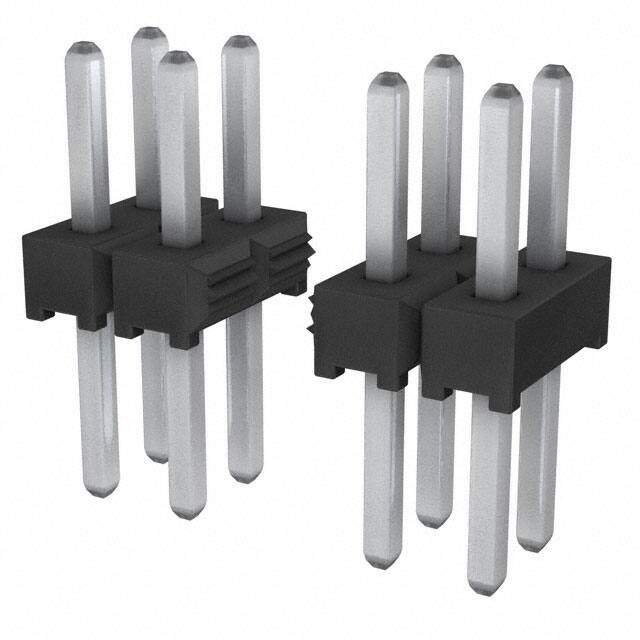

TMM-105-01-T-D

Specifications

Contact Length Post

0.138 3.50mm

Terminal

Solder

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Nominal Gerilim

281V

Pitch Mating

0.079 2.00mm

Contact Type

Male Pin

Option

GENERAL PURPOSE

Mating Contact Pitch

0.079 inch

Pozisyon Sayısı

10

Mil Conformance

NO

Orientation

Straight

Iec Conformance

NO

Seri

TMM

Housing Material

Polymer

Ambalaj

Bulk

Body Breadth

0.155 inch

Number Of Conductors

ONE

Current Rating Amps

3.2A per Contact

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Insulation Height

0.059 1.50mm

Montaj Tipi

Through Hole

Connector Type

Header

Style

Board to Board or Cable

Sıra Sayısı

2

Housing Color

Black

Parça Durumu

Active

Number Of Pcb Rows

2

Fabrika Tedarik Süresi

0 Weeks

Contact Lengthmating

0.126 3.20mm

Insulation Materials

Liquid Crystal Polymer (LCP)

Genişlik

3.94mm

Gender

Male

Kurşunsuz

Lead Free

Max Current Rating

3.9A

Shrouding

Unshrouded

Mixed Contacts

NO

Overall Contact Length

0.323 8.20mm

Montaj

Through Hole
