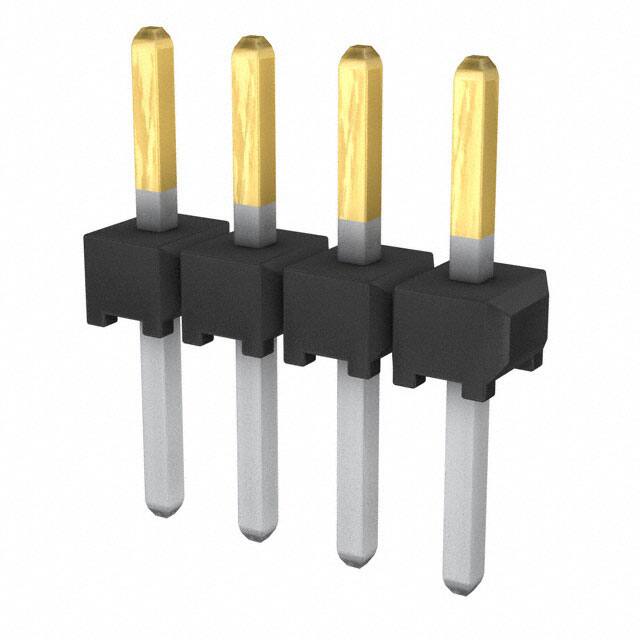

TMM-104-01-L-S

Specifications

Ambalaj

Bulk

Housing Material

Polymer

Seri

TMM

Iec Conformance

NO

Orientation

Straight

Mil Conformance

NO

Current Rating Amps

3.2A per Contact

Number Of Conductors

ONE

Pitch Mating

0.079 2.00mm

Radyasyon Dayanımı

No

Reliability

COMMERCIAL

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Length Post

0.138 3.50mm

Pozisyon Sayısı

4

Mating Contact Pitch

0.079 inch

Option

GENERAL PURPOSE

Contact Type

Male Pin

Contact Lengthmating

0.126 3.20mm

Fabrika Tedarik Süresi

3 Weeks

Mounting Option1

LOCKING

Number Of Pcb Rows

1

Shrouding

Unshrouded

Max Current Rating

3.9A

Kurşunsuz

Lead Free

Gender

Male

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99

Connector Type

Header

Style

Board to Board or Cable

Insulation Height

0.059 1.50mm

Montaj Tipi

Through Hole

Terminal Adımı

2mm

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Parça Durumu

Active

Sıra Sayısı

1

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)
