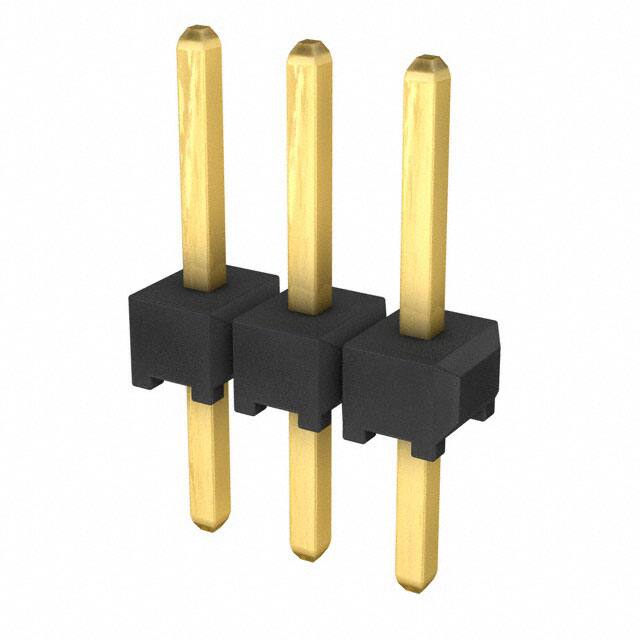

TMM-103-03-G-S

Specifications

Fabrika Tedarik Süresi

3 Weeks

Contact Lengthmating

0.157 4.00mm

Mounting Option1

LOCKING

Contact Finish Thickness Post

3.00μin 0.076μm

Number Of Pcb Rows

1

Plating Thickness

20μin

Shrouding

Unshrouded

Max Current Rating

3.9A

Insulation Materials

Liquid Crystal Polymer (LCP)

Gender

Male

Terminal Adımı

2mm

Montaj Tipi

Through Hole

Insulation Height

0.059 1.50mm

Style

Board to Board or Cable

Connector Type

Header

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Sıra Sayısı

1

Ambalaj

Tube

Housing Material

Polymer

Seri

TMM

Iec Conformance

NO

Orientation

Straight

Mil Conformance

NO

Number Of Conductors

ONE

Current Rating Amps

3.2A per Contact

Reliability

COMMERCIAL

Pitch Mating

0.079 2.00mm

Radyasyon Dayanımı

No

Contact Finish Thickness Mating

20.0μin 0.51μm

Contact Length Post

0.106 2.69mm

Terminal

Solder

Pozisyon Sayısı

3

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mating Contact Pitch

0.079 inch

Additional Feature

ELP, FLEXYZ, LOW PROFILE

Filter Feature

NO

Insulation Color

Black
