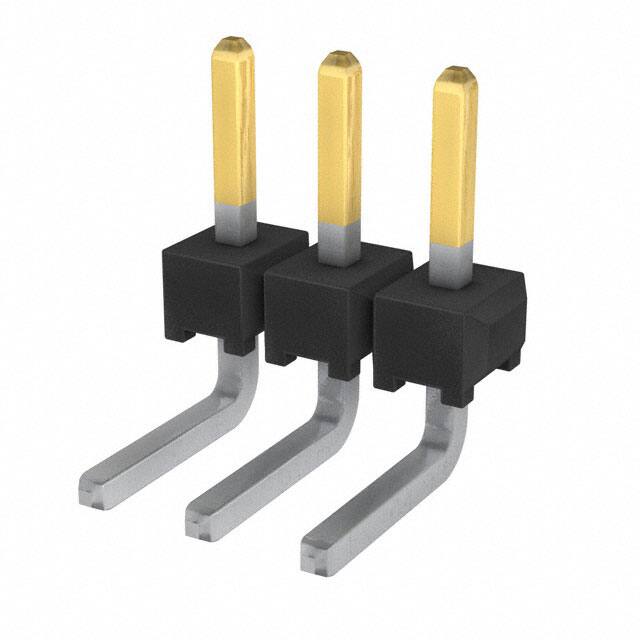

TMM-103-01-L-S-RA

Specifications

Pozisyon Sayısı

3

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Radyasyon Dayanımı

No

Pitch Mating

0.079 2.00mm

Contact Length Post

0.120 3.05mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Terminal

Solder

Number Of Conductors

ONE

Current Rating Amps

3.2A per Contact

Housing Material

Polymer

Ambalaj

Bulk

Mating Contact Row Spacing

0.079 inch

Mil Conformance

NO

Orientation

Right Angle

Iec Conformance

NO

Seri

TMM

Parça Durumu

Active

Sıra Sayısı

1

Insulation Height

0.079 2.00mm

Montaj Tipi

Through Hole, Right Angle

Terminal Adımı

2mm

Connector Type

Header

Style

Board to Board or Cable

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Max Current Rating

3.9A

Shrouding

Unshrouded

ECCN Kodu

EAR99

Insulation Materials

Liquid Crystal Polymer (LCP)

Gender

Male

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

3 Weeks

Contact Lengthmating

0.126 3.20mm

Number Of Pcb Rows

2

Montaj

Through Hole

Kurşunsuz Kodu

yes

Mixed Contacts

NO
