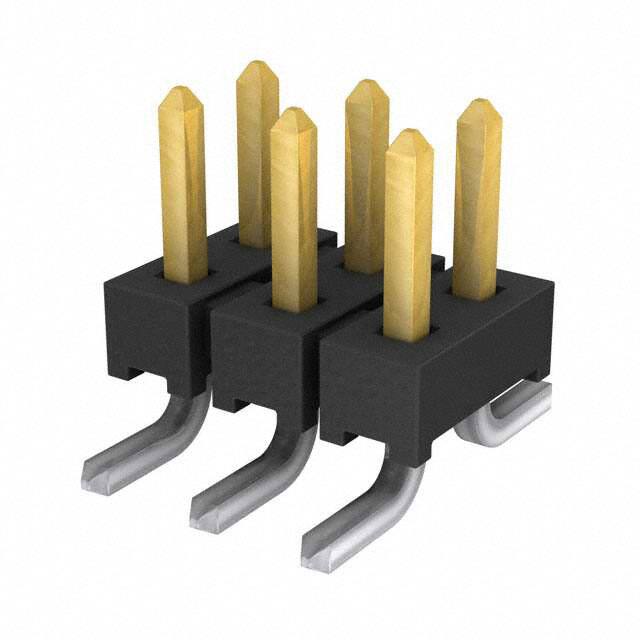

TMM-103-01-L-D-SM

Specifications

Current Rating Amps

3.2A per Contact

Number Of Conductors

ONE

Body Breadth

0.155 inch

Housing Material

Polymer

Ambalaj

Tube

Iec Conformance

NO

Orientation

Straight

Mil Conformance

NO

Seri

TMM

Pozisyon Sayısı

6

Mating Contact Pitch

0.079 inch

Option

GENERAL PURPOSE

Contact Type

Male Pin

Radyasyon Dayanımı

No

Pitch Mating

0.079 2.00mm

Reliability

COMMERCIAL

Terminal

Solder

Contact Finish Thickness Mating

10.0μin 0.25μm

Max Current Rating

3.9A

Shrouding

Unshrouded

Gender

Male

Kurşunsuz

Lead Free

ECCN Kodu

EAR99

Insulation Materials

Liquid Crystal Polymer (LCP)

Mounting Option1

LOCKING

Total Number Of Contacts

6

Contact Lengthmating

0.126 3.20mm

Fabrika Tedarik Süresi

3 Weeks

Plating Thickness

10μin

Number Of Pcb Rows

2

Parça Durumu

Active

Sıra Sayısı

2

Style

Board to Board or Cable

Connector Type

Header

Montaj Tipi

Surface Mount

Insulation Height

0.059 1.50mm

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-55°C~125°C
