Volume pricing
- 1+ pcs$0.67
- 10+ pcs$0.63
- 100+ pcs$0.60
- 500+ pcs$0.56
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

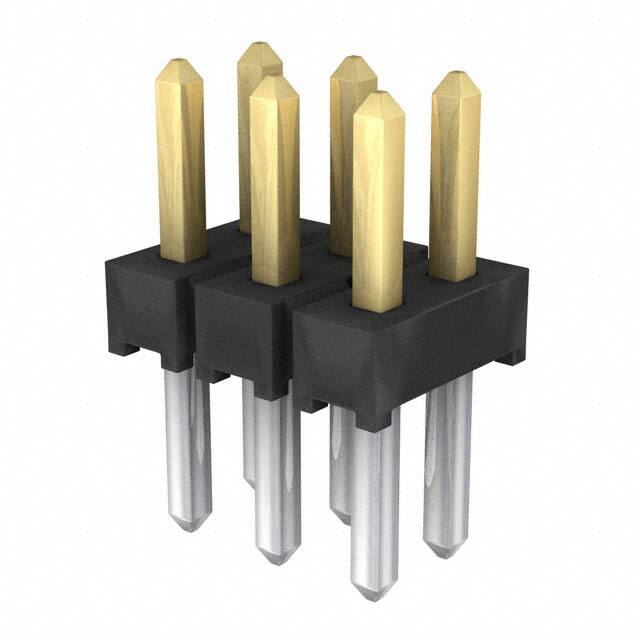

Specifications
- Overall Contact Length
- 0.323 8.20mm
- Mixed Contacts
- NO
- Kurşunsuz Kodu
- yes
- Yayın Yılı
- 2012
- Din Conformance
- NO
- Contact Materials
- Phosphor Bronze
- Reach Svhc
- No SVHC
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- JESD-609 Kodu
- e3
- RoHS Durumu
- ROHS3 Compliant
- Çalışma Sıcaklığı
- -55°C~125°C
- Depth
- 3.94mm
- Voltage Rated Ac
- 250V
- Fastening Type
- Push-Pull
- Contact Finish Mating
- Gold
- Uzunluk
- 6mm
- Row Spacing Mating
- 0.079 (2.00mm)
- Max Voltage Rating Ac
- 500V
- Insulation Color
- Black
- Filter Feature
- NO
- Additional Feature
- ELP, FLEXYZ, LOW PROFILE
- Contact Finish Post
- Tin
- Contact Shape
- Square
- Terminal
- Solder
- Contact Length Post
- 0.138 3.50mm
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Radyasyon Dayanımı
- No
- Pitch Mating
- 0.079 2.00mm
- Reliability
- COMMERCIAL
- Mating Contact Pitch
- 0.079 inch
- Contact Type
- Male Pin
- Option
- GENERAL PURPOSE
- Pozisyon Sayısı
- 6
- Iec Conformance
- NO
- Orientation
- Straight
- Mil Conformance
- NO
- Seri
- TMM
- Housing Material
- Polymer
- Ambalaj
- Bulk
- Current Rating Amps
- 3.2A per Contact
