Volume pricing
- 1+ pcs$0.66
- 10+ pcs$0.63
- 100+ pcs$0.59
- 500+ pcs$0.56
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

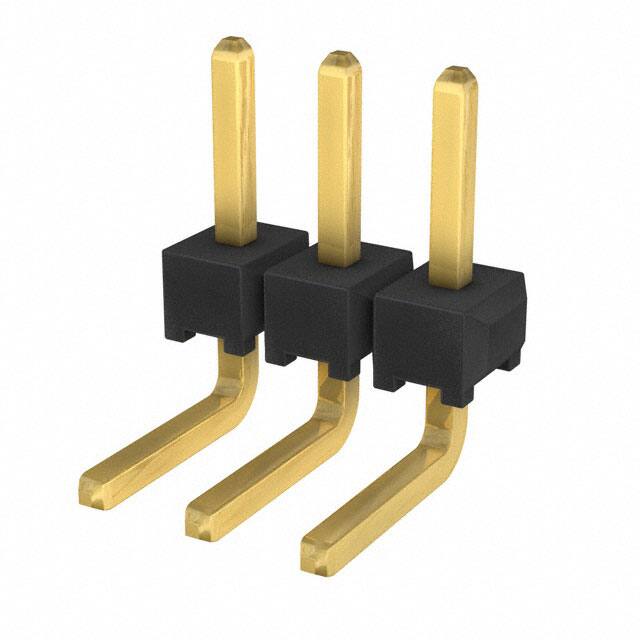

Specifications
- Current Rating Amps
- 3.2A per Contact
- Number Of Conductors
- ONE
- Mil Conformance
- NO
- Orientation
- Right Angle
- Iec Conformance
- NO
- Seri
- TMM
- Mating Contact Row Spacing
- 0.079 inch
- Housing Material
- Polymer
- Ambalaj
- Bulk
- Mating Contact Pitch
- 0.079 inch
- Option
- GENERAL PURPOSE
- Contact Type
- Male Pin
- Pozisyon Sayısı
- 3
- Terminal
- Solder
- Contact Length Post
- 0.120 3.05mm
- Contact Finish Thickness Mating
- 20.0μin 0.51μm
- Radyasyon Dayanımı
- No
- Pitch Mating
- 0.079 2.00mm
- Reliability
- COMMERCIAL
- Gender
- Male
- ECCN Kodu
- EAR99
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Max Current Rating
- 3.9A
- Shrouding
- Unshrouded
- Number Of Pcb Rows
- 2
- Contact Finish Thickness Post
- 3.00μin 0.076μm
- Mounting Option1
- LOCKING
- Fabrika Tedarik Süresi
- 4 Weeks
- Contact Lengthmating
- 0.126 3.20mm
- Sıra Sayısı
- 1
- Parça Durumu
- Active
- Pcb Contact Pattern
- RECTANGULAR
- Number Of Positions Loaded
- All
- Style
- Board to Board or Cable
- Connector Type
- Header
- Insulation Height
- 0.079 2.00mm
- Montaj Tipi
- Through Hole, Right Angle
- Terminal Adımı
- 2mm
- RoHS Durumu
- ROHS3 Compliant
- Çalışma Sıcaklığı
- -55°C~125°C
