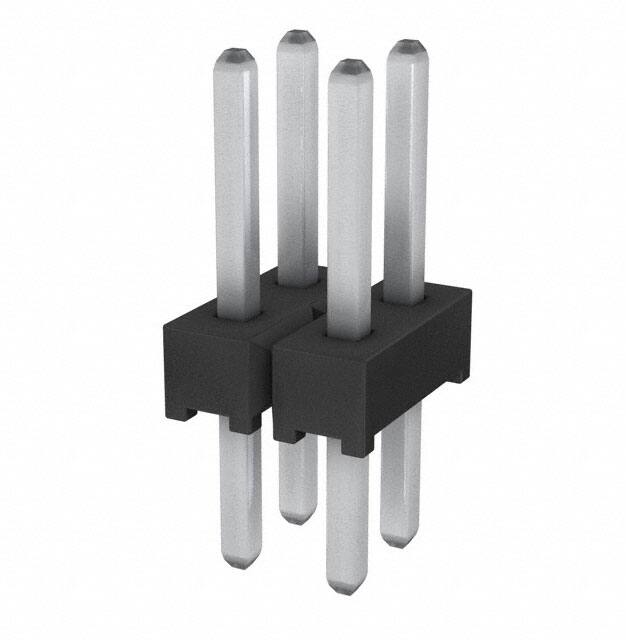

TMM-102-03-T-D

Specifications

Fastening Type

Push-Pull

Voltage Rated Ac

250V

Max Voltage Rating Ac

500V

Contact Finish Mating

Tin

Row Spacing Mating

0.079 (2.00mm)

Uzunluk

4mm

Insulation Color

Black

Additional Feature

LOW PROFILE

Filter Feature

NO

Contact Shape

Square

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Overall Contact Length

0.323 8.20mm

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Din Conformance

NO

Yayın Yılı

2012

RoHS Durumu

ROHS3 Compliant

Depth

3.94mm

Çalışma Sıcaklığı

-55°C~105°C

Connector Type

Header

Style

Board to Board or Cable

Insulation Height

0.059 1.50mm

Montaj Tipi

Through Hole

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Parça Durumu

Active

Sıra Sayısı

2

Fabrika Tedarik Süresi

3 Weeks

Contact Lengthmating

0.157 4.00mm

Mounting Option1

LOCKING

Number Of Pcb Rows

2

Shrouding

Unshrouded

Max Current Rating

3.9A

Kurşunsuz

Lead Free

Gender

Male

Insulation Materials

Liquid Crystal Polymer (LCP)

ECCN Kodu

EAR99
