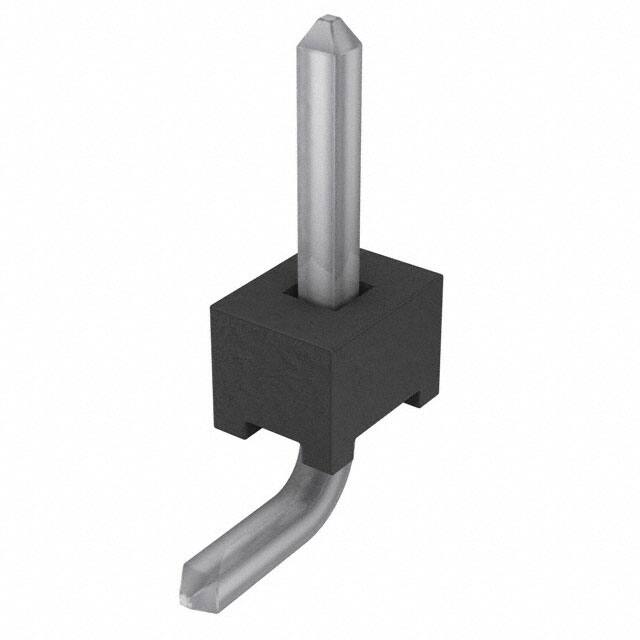

TMM-102-01-T-S-SM

Specifications

Reference Standard

UL

Montaj

Surface Mount

Kurşunsuz Kodu

yes

Mixed Contacts

NO

Çalışma Sıcaklığı

-55°C~105°C

Depth

1.97mm

RoHS Durumu

ROHS3 Compliant

Lead Pitch

2mm

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Contact Materials

Phosphor Bronze

Yayın Yılı

2005

Din Conformance

NO

Max Voltage Rating Ac

500V

Uzunluk

4mm

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Fastening Type

Push-Pull

Voltage Rated Ac

250V

Contact Shape

Square

Ul Flammability Code

94V-0

Additional Feature

ELP; LOW PROFILE

Filter Feature

NO

Pozisyon Sayısı

2

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mating Contact Pitch

0.079 inch

Reliability

COMMERCIAL

Pitch Mating

0.079 2.00mm

Radyasyon Dayanımı

No

Terminal

Solder

Number Of Conductors

ONE

Current Rating Amps

3.2A per Contact

Ambalaj

Bulk

Housing Material

Polymer

Body Breadth

0.079 inch

Seri

TMM

Iec Conformance

NO

Orientation

Straight
