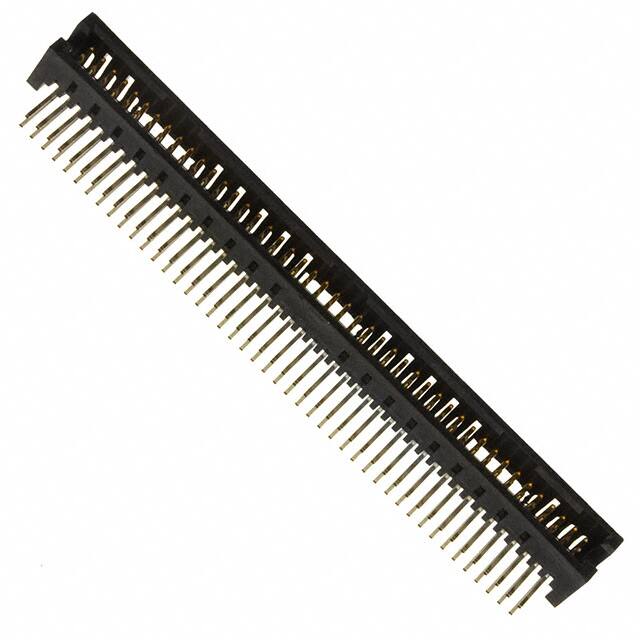

TFML-145-01-S-D-RA

Specifications

Mating Contact Pitch

0.05 inch

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

3 Weeks

Number Of Conductors

ONE

Connector Type

Header

Mil Conformance

NO

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.225 5.72mm

Filter Feature

NO

Pitch Mating

0.050 1.27mm

Nominal Gerilim

350V

Orientation

Right Angle

Fastening Type

Friction Lock

Iec Conformance

NO

Kurşunsuz

Lead Free

Mixed Contacts

NO

Seri

Tiger Eye™ TFML

Parça Durumu

Active

Reference Standard

UL, CSA

Lead Pitch

1.27mm

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

2

Pozisyon Sayısı

90

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tube

Number Of Pcb Rows

2

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Pcb Contact Pattern

RECTANGULAR

Housing Material

Plastic

Gender

Male

Yayın Yılı

2008

Contact Length Post

0.075 1.91mm

Reliability

COMMERCIAL

Plating Thickness

30μin
