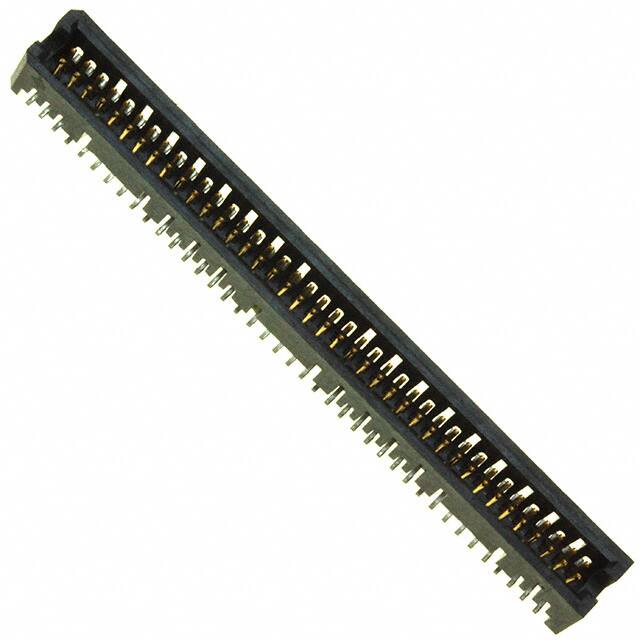

TFML-140-02-S-D

Specifications

Mating Contact Pitch

0.05 inch

Polarization Key

POLARIZED HOUSING

Insulation Resistance

5000000000Ohm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Header

Total Number Of Contacts

80

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Insulation Height

0.220 5.60mm

Filter Feature

NO

Pitch Mating

0.050 1.27mm

Nominal Gerilim

350V

Iec Conformance

NO

Orientation

Straight

Fastening Type

Friction Lock

Seri

Tiger Eye™ TFML

Parça Durumu

Active

Kurşunsuz

Lead Free

Mixed Contacts

NO

Lead Pitch

1.27mm

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

80

Sıra Sayısı

2

Montaj Tipi

Surface Mount

Ambalaj

Tube

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Surface Mount

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR

Housing Material

Plastic

Gender

Male

Yayın Yılı

2008

Plating Thickness

30μin
