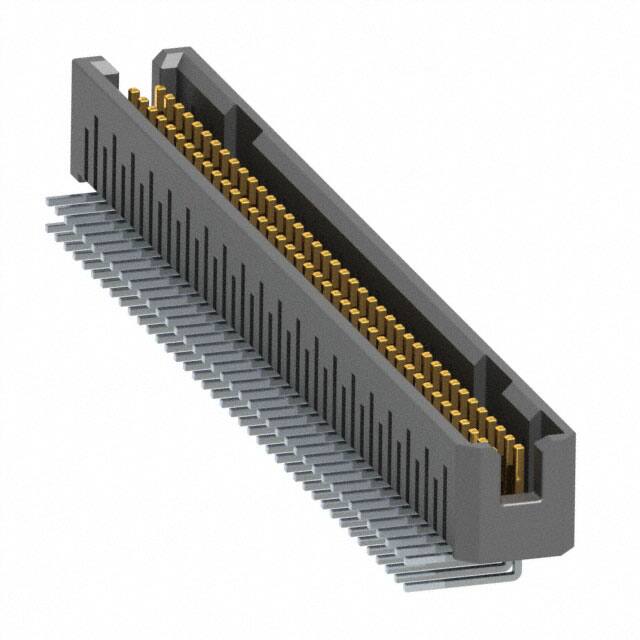

TFML-140-01-S-D-RA

Specifications

Montaj

Through Hole

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Ambalaj

Tube

Montaj Tipi

Through Hole, Right Angle

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

2

Pozisyon Sayısı

80

Kurşunsuz

Lead Free

Mixed Contacts

NO

Seri

Tiger Eye™ TFML

Parça Durumu

Active

Reference Standard

UL, CSA

Lead Pitch

1.27mm

Filter Feature

NO

Insulation Height

0.225 5.72mm

Nominal Gerilim

350V

Pitch Mating

0.050 1.27mm

Orientation

Right Angle

Fastening Type

Friction Lock

Iec Conformance

NO

Number Of Conductors

ONE

Connector Type

Header

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

3 Weeks

Mating Contact Pitch

0.05 inch

Additional Feature

ROHS COMPLIANT

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Terminal

Solder

Contact Materials

Phosphor Bronze

RoHS Durumu

ROHS3 Compliant
