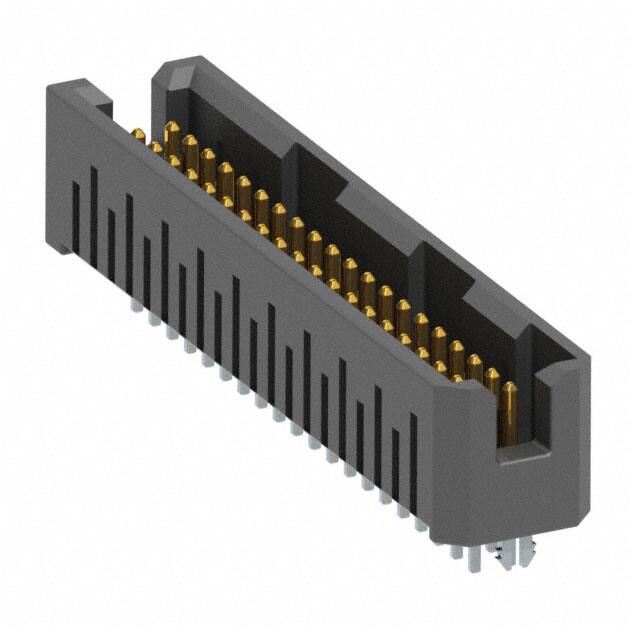

TFML-120-02-S-D-LC

Specifications

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Seri

Tiger Eye™ TFML

Parça Durumu

Active

Mixed Contacts

NO

Reference Standard

UL

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

40

Sıra Sayısı

2

Total Number Of Contacts

40

Connector Type

Header

Number Of Conductors

ONE

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Insulation Height

0.220 5.60mm

Filter Feature

NO

Pitch Mating

0.050 1.27mm

Iec Conformance

NO

JESD-609 Kodu

e3

Orientation

Straight

Fastening Type

Friction Lock

Özellikler

Board Lock

Mating Contact Pitch

0.05 inch

Polarization Key

POLARIZED HOUSING

Insulation Resistance

5000000000Ohm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

4 Weeks

Dielectric Withstanding Voltage

1000VAC V

Insulation Color

Black

Terminal

Solder

Contact Materials

Phosphor Bronze

Shrouding

Shrouded - 4 Wall
