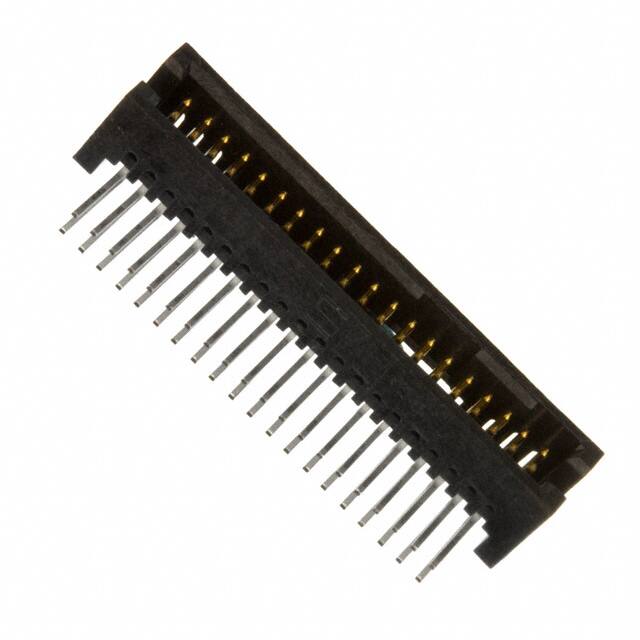

TFML-120-01-S-D-RA

Specifications

Reference Standard

UL, CSA

Lead Pitch

1.27mm

Mixed Contacts

NO

Kurşunsuz

Lead Free

Parça Durumu

Active

Seri

Tiger Eye™ TFML

Sıra Sayısı

2

Pozisyon Sayısı

40

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Number Of Pcb Rows

2

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tube

Number Of Positions Loaded

All

Montaj

Through Hole

Insulation Materials

Liquid Crystal Polymer (LCP)

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Connector Type

Header

Fastening Type

Friction Lock

Orientation

Right Angle

Iec Conformance

NO

Pitch Mating

0.050 1.27mm

Nominal Gerilim

350V

Insulation Height

0.225 5.72mm

Filter Feature

NO

Style

Board to Board or Cable

Contact Lengthmating

0.134 3.39mm

Kurşunsuz Kodu

yes

Housing Color

Black

Depth

7.37mm

RoHS Durumu

ROHS3 Compliant
