Volume pricing
- 1+ pcs$4.49
- 10+ pcs$4.24
- 100+ pcs$4.00
- 500+ pcs$3.77
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

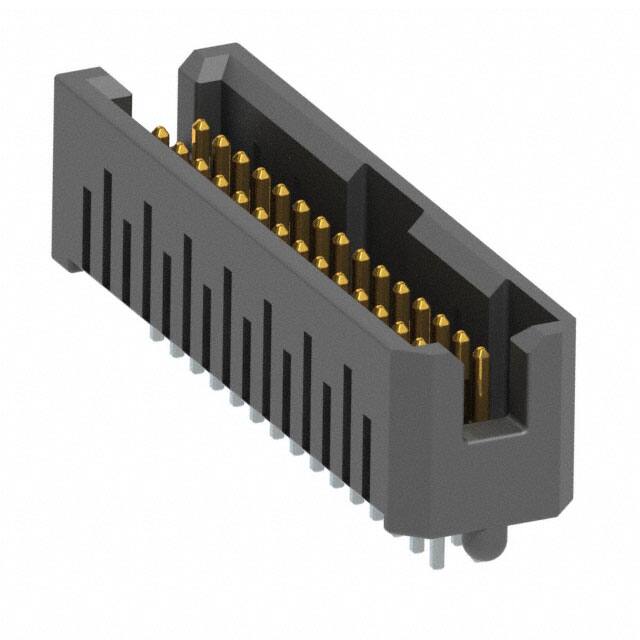

Specifications
- HTS Kodu
- 8536.69.40.40
- Din Conformance
- NO
- Shrouding
- Shrouded - 4 Wall
- Contact Materials
- Phosphor Bronze
- Insulation Color
- Black
- Terminal
- Solder
- Dielectric Withstanding Voltage
- 1000VAC V
- Mounting Option1
- LOCKING
- Depth
- 5.72mm
- RoHS Durumu
- ROHS3 Compliant
- Max Current Rating
- 5A
- Option
- GENERAL PURPOSE
- Style
- Board to Board or Cable
- Contact Lengthmating
- 0.134 3.39mm
- Kurşunsuz Kodu
- yes
- Contact Finish Mating
- Gold
- Contact Type
- Male Pin
- Contact Finish Post
- Tin
- Row Spacing Mating
- 0.050 (1.27mm)
- Uzunluk
- 22.23mm
- Contact Shape
- Square
- Reliability
- COMMERCIAL
- Rated Current Signal
- 2A
- Yayın Yılı
- 2009
- Gender
- Male
- Housing Material
- Polymer
- Pcb Contact Pattern
- RECTANGULAR
- Number Of Positions Loaded
- All
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Board Mounting Option
- POSITIONING PIN
- Number Of Pcb Rows
- 2
- Ambalaj
- Tube
- Montaj Tipi
- Surface Mount
- Sıra Sayısı
- 2
- Pozisyon Sayısı
- 30
- Material Flammability Rating
- UL94 V-0
- Radyasyon Dayanımı
- No
- Reference Standard
- UL
- Mixed Contacts
- NO
- Parça Durumu
- Active
