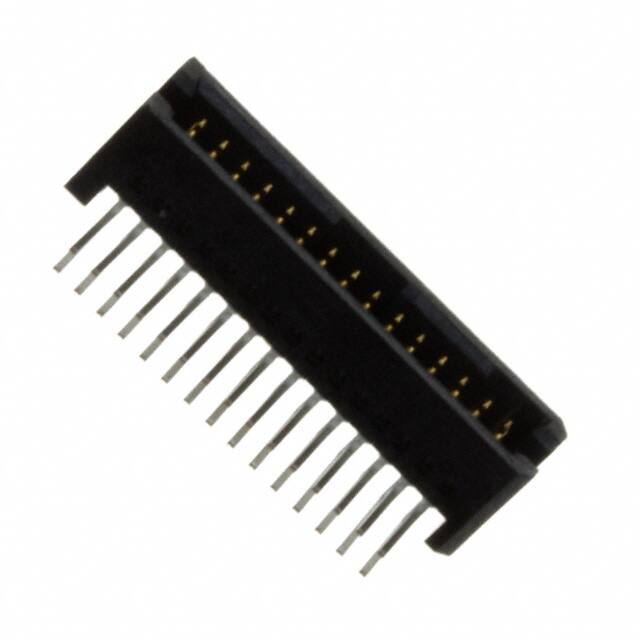

TFML-115-01-S-D-RA

Specifications

Number Of Pcb Rows

2

Ambalaj

Tube

Montaj Tipi

Through Hole, Right Angle

Montaj

Through Hole

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Reference Standard

UL, CSA

Kurşunsuz

Lead Free

Mixed Contacts

NO

Seri

Tiger Eye™ TFML

Parça Durumu

Active

Sıra Sayısı

2

Pozisyon Sayısı

30

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Connector Type

Header

Orientation

Right Angle

Fastening Type

Friction Lock

JESD-609 Kodu

e3

Iec Conformance

NO

Filter Feature

NO

Insulation Height

0.225 5.72mm

Pitch Mating

0.050 1.27mm

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Contact Materials

Phosphor Bronze

Genişlik

5.59mm

Terminal

Solder

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Additional Feature

ROHS COMPLIANT

Kurşunsuz Kodu

yes

Housing Color

Black
