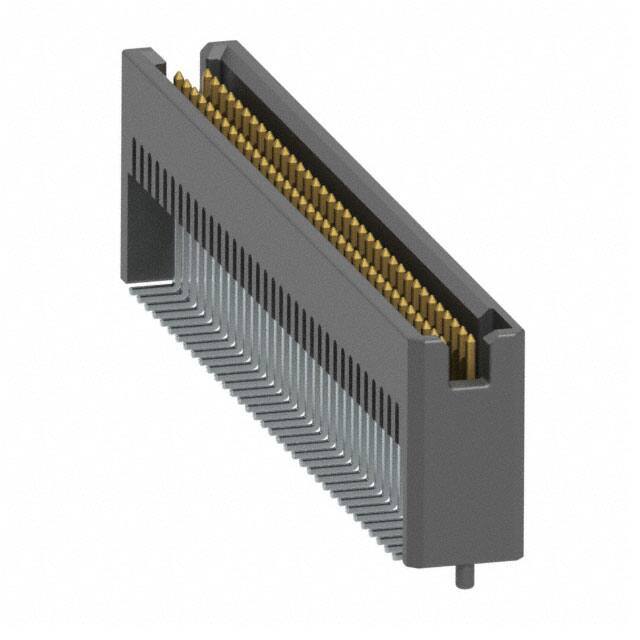

TFM-135-32-S-D-A

Specifications

Board Mounting Option

PEG

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

70

Sıra Sayısı

2

Seri

Tiger Eye™ TFM

Parça Durumu

Active

Mixed Contacts

NO

Filter Feature

NO

Insulation Height

0.435 11.05mm

Pitch Mating

0.050 1.27mm

Nominal Gerilim

275VAC

JESD-609 Kodu

e3

Iec Conformance

NO

Orientation

Straight

Özellikler

Board Guide

Fastening Type

Push-Pull

Connector Type

Header

Total Number Of Contacts

70

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Mating Contact Pitch

0.05 inch

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Terminal

Solder

Insulation Color

Black

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE
