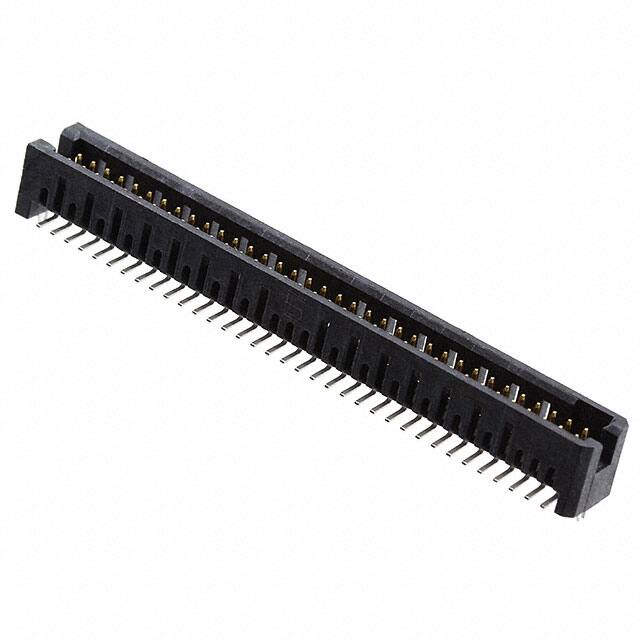

TFM-135-02-S-D-LC

Specifications

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Total Number Of Contacts

70

Connector Type

Header

Özellikler

Board Lock

Fastening Type

Push-Pull

Orientation

Straight

JESD-609 Kodu

e3

Iec Conformance

NO

Pitch Mating

0.050 1.27mm

Nominal Gerilim

275VAC

Filter Feature

NO

Insulation Height

0.220 5.60mm

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Reach Svhc

No SVHC

Insulation Resistance

5000000000Ohm

Polarization Key

ENDS

Number Of Pcb Rows

2

Ambalaj

Tube

Montaj Tipi

Surface Mount

Montaj

Surface Mount

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Reference Standard

UL

Mixed Contacts

NO

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Sıra Sayısı

2

Pozisyon Sayısı

70

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Reliability

COMMERCIAL

Plating Thickness

30μin

Yayın Yılı

2011
