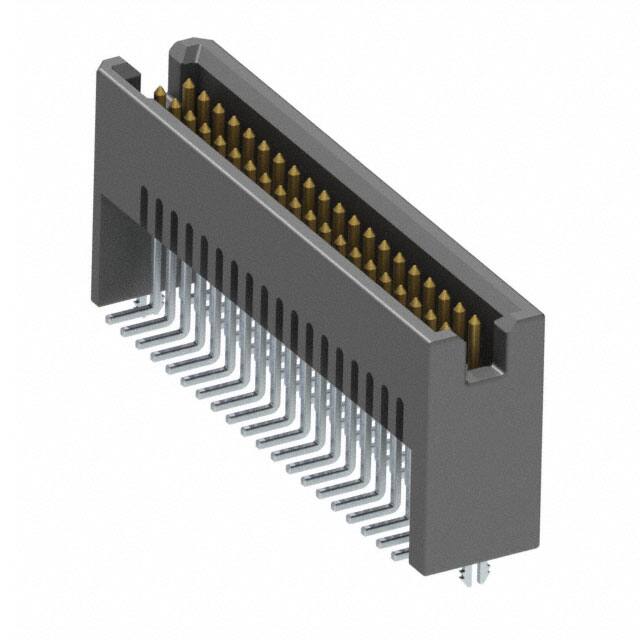

TFM-120-32-S-D-LC

Specifications

Filter Feature

NO

Insulation Height

0.435 11.05mm

Pitch Mating

0.050 1.27mm

Nominal Gerilim

275VAC

JESD-609 Kodu

e3

Iec Conformance

NO

Orientation

Straight

Fastening Type

Push-Pull

Özellikler

Board Lock

Total Number Of Contacts

40

Connector Type

Header

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Polarization Key

ENDS

Insulation Resistance

5000000000Ohm

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Mating Contact Pitch

0.05 inch

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

40

Sıra Sayısı

2

Seri

Tiger Eye™ TFM

Parça Durumu

Active

Mixed Contacts

NO

Reference Standard

UL

Contact Shape

Square

Uzunluk

28.58mm

Row Spacing Mating

0.050 (1.27mm)

Contact Finish Post

Tin
