Volume pricing
- 1+ pcs$6.76
- 10+ pcs$6.38
- 100+ pcs$6.02
- 500+ pcs$5.68
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

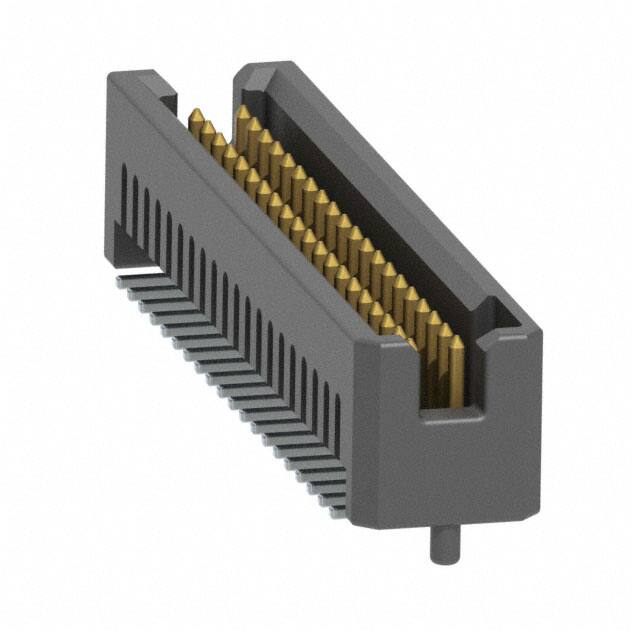

Specifications
- Depth
- 5.72mm
- RoHS Durumu
- ROHS3 Compliant
- Max Current Rating
- 5A
- Option
- GENERAL PURPOSE
- Contact Lengthmating
- 0.131 3.33mm
- Current Rating Amps
- 2.9A per Contact
- Style
- Board to Board or Cable
- Kurşunsuz Kodu
- yes
- Din Conformance
- NO
- Shrouding
- Shrouded - 4 Wall
- Additional Feature
- PIN, ALIGNMENT
- Contact Materials
- Phosphor Bronze
- Terminal
- Solder
- Insulation Color
- Black
- Gender
- Male
- Housing Material
- Polymer
- Pcb Contact Pattern
- RECTANGULAR
- Contact Finish Mating
- Gold
- Contact Type
- Male Pin
- Contact Finish Post
- Tin
- Row Spacing Mating
- 0.050 (1.27mm)
- Uzunluk
- 28.58mm
- Contact Shape
- Square
- Akım Değeri
- 2A
- Reliability
- COMMERCIAL
- Plating Thickness
- 30μin
- Yayın Yılı
- 2011
- Sıra Sayısı
- 2
- Pozisyon Sayısı
- 40
- Material Flammability Rating
- UL94 V-0
- Radyasyon Dayanımı
- No
- Reference Standard
- UL, CSA
- Mixed Contacts
- NO
- Parça Durumu
- Active
- Seri
- Tiger Eye™ TFM
- Number Of Positions Loaded
- All
- Montaj
- Surface Mount
- Ul Flammability Code
- 94V-0
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Number Of Pcb Rows
- 2
