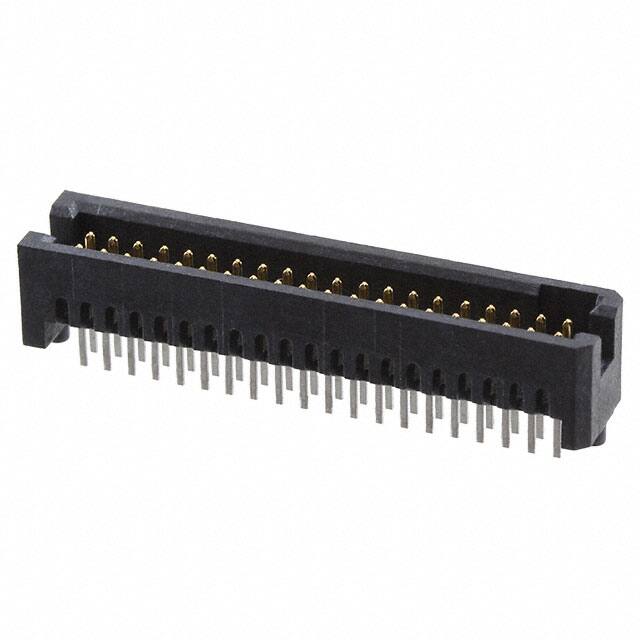

TFM-120-01-S-D-A

Specifications

Board Mounting Option

PEG

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj Tipi

Through Hole

Ambalaj

Tube

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Sıra Sayısı

2

Pozisyon Sayısı

40

Mixed Contacts

NO

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Reference Standard

UL, CSA

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Insulation Height

0.220 5.60mm

Özellikler

Board Guide

Fastening Type

Push-Pull

Orientation

Straight

JESD-609 Kodu

e3

Iec Conformance

NO

ECCN Kodu

EAR99

Number Of Conductors

ONE

Connector Type

Header

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

1 Weeks

Mating Contact Pitch

0.05 inch

Additional Feature

ROHS COMPLIANT

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Insulation Color

Black
