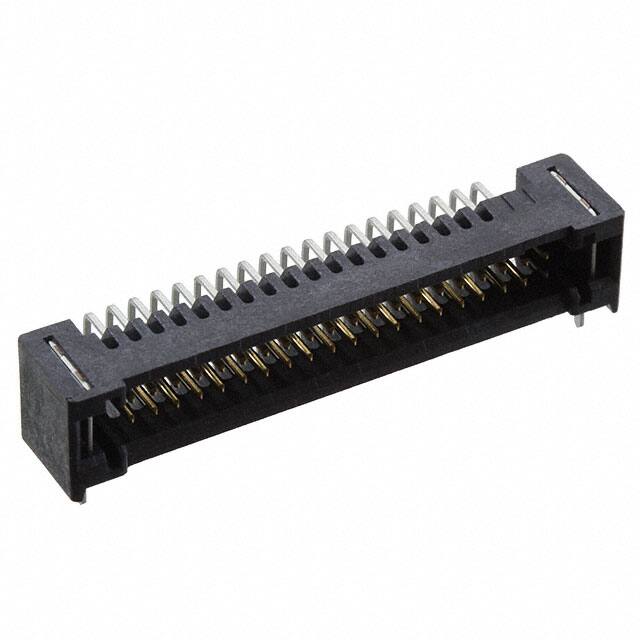

TFM-120-01-L-D-RE1-WT

Specifications

Ambalaj

Tube

Montaj Tipi

Through Hole, Right Angle

Number Of Pcb Rows

2

Number Of Positions Loaded

All

Montaj

Through Hole

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Reference Standard

UL, CSA

Material Flammability Rating

UL94 V-0

Sıra Sayısı

2

Pozisyon Sayısı

40

Number Of Conductors

ONE

Connector Type

Header, Elevated

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Insulation Height

0.256 6.50mm

Özellikler

Solder Retention

Fastening Type

Push-Pull

Iec Conformance

NO

JESD-609 Kodu

e3

Mating Contact Pitch

0.05 inch

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

3 Weeks

Terminal

Solder

Insulation Color

Black

Contact Materials

Phosphor Bronze

Additional Feature

WITH WELD TAB, ROHS COMPLIANT

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Contact Lengthmating

0.139 3.53mm

Current Rating Amps

2.9A per Contact
