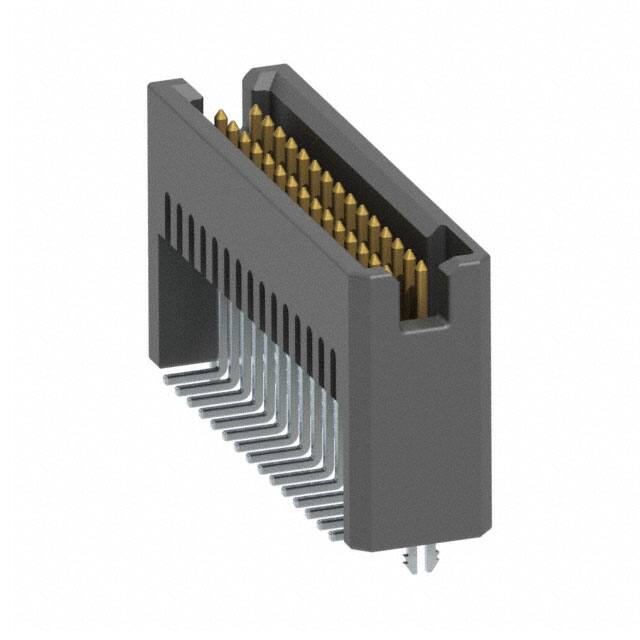

TFM-115-32-S-D-LC

Specifications

Orientation

Straight

Fastening Type

Push-Pull

Özellikler

Board Lock

JESD-609 Kodu

e3

Iec Conformance

NO

Filter Feature

NO

Insulation Height

0.435 11.05mm

Pitch Mating

0.050 1.27mm

Nominal Gerilim

275VAC

Mil Conformance

NO

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Total Number Of Contacts

30

Connector Type

Header

Fabrika Tedarik Süresi

3 Weeks

Insulation Resistance

5000000000Ohm

Reach Svhc

No SVHC

Polarization Key

ENDS

Mating Contact Pitch

0.05 inch

Montaj

Surface Mount

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Ul Flammability Code

94V-0

Number Of Pcb Rows

2

Ambalaj

Tube

Montaj Tipi

Surface Mount

Sıra Sayısı

2

Pozisyon Sayısı

30

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Reference Standard

UL

Mixed Contacts

NO

Seri

Tiger Eye™ TFM

Parça Durumu

Active

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Type

Male Pin
