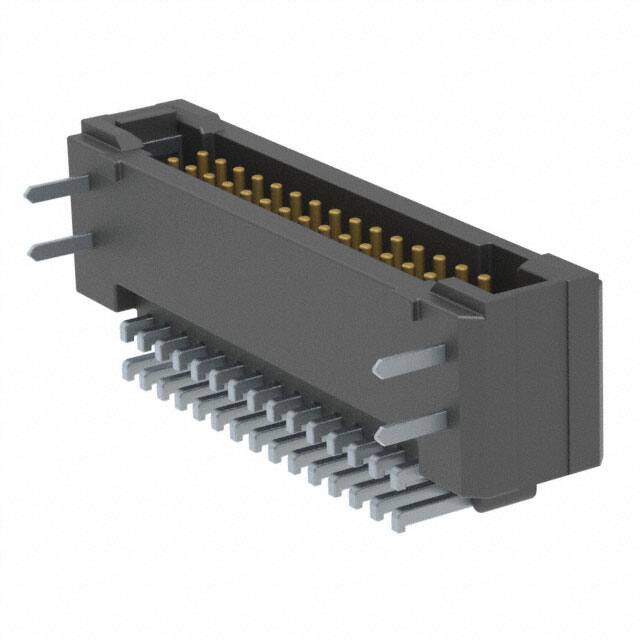

TFM-115-02-L-DH

Specifications

Contact Lengthmating

0.131 3.33mm

Current Rating Amps

2.9A per Contact

Style

Board to Board or Cable

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Contact Materials

Phosphor Bronze

Insulation Color

Black

Terminal

Solder

HTS Kodu

8536.69.40.40

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Additional Feature

ELP; TIGER EYE, SHROUDED

Pcb Contact Pattern

RECTANGULAR

Reliability

COMMERCIAL

Body Length Or Diameter

0.875 inch

Plating Thickness

15μin

Yayın Yılı

2009

Contact Finish Mating

Gold

Contact Finish Post

Tin

Contact Type

Male Pin

Row Spacing Mating

0.050 (1.27mm)

Contact Shape

Square

Mixed Contacts

NO

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Sıra Sayısı

2

Pozisyon Sayısı

30

Material Flammability Rating

UL94 V-0

Number Of Pcb Rows

2

Montaj Tipi

Surface Mount, Right Angle

Ambalaj

Tube

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

15.0μin 0.38μm

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

ECCN Kodu

EAR99
