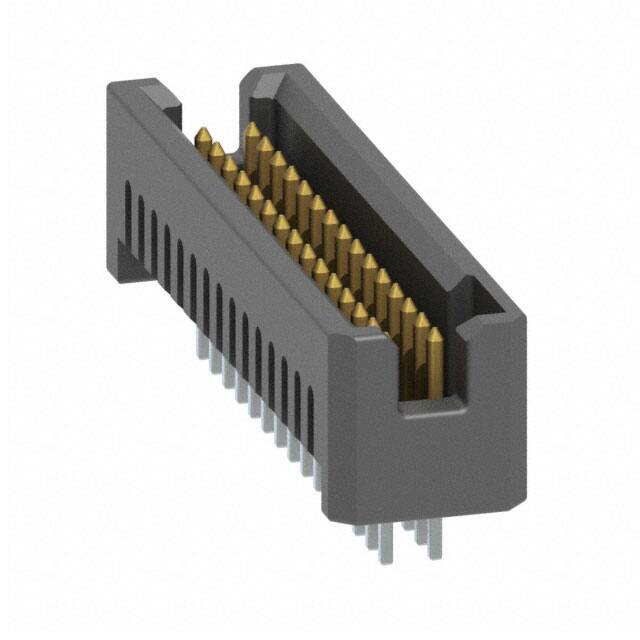

TFM-115-01-L-D

Specifications

Number Of Positions Loaded

All

Montaj

Through Hole

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Pcb Rows

2

Montaj Tipi

Through Hole

Ambalaj

Tube

Sıra Sayısı

2

Pozisyon Sayısı

30

Material Flammability Rating

UL94 V-0

Reference Standard

UL, CSA

Mixed Contacts

NO

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Fastening Type

Push-Pull

Orientation

Straight

Iec Conformance

NO

JESD-609 Kodu

e3

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Insulation Height

0.220 5.60mm

Filter Feature

NO

Contact Finish Thickness Mating

15.0μin 0.38μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Connector Type

Header

Fabrika Tedarik Süresi

3 Weeks

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Mating Contact Pitch

0.05 inch

Din Conformance

NO

Shrouding

Shrouded - 4 Wall

Additional Feature

ROHS COMPLIANT

Contact Materials

Phosphor Bronze

Insulation Color

Black

Terminal

Solder

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE
