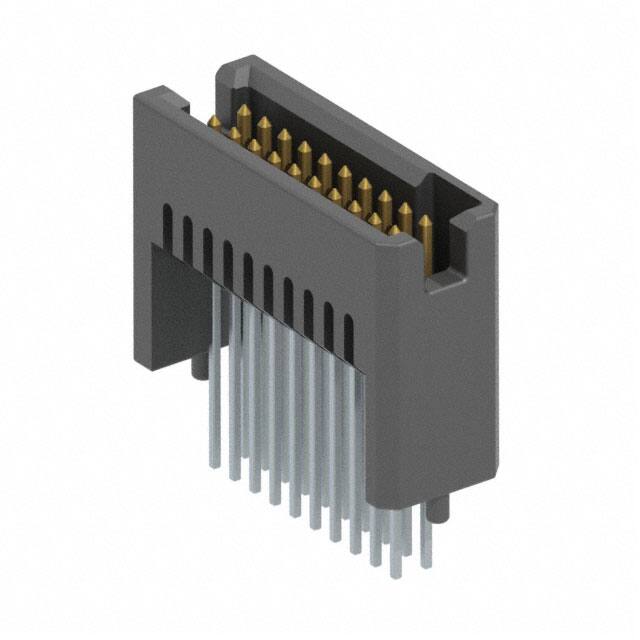

TFM-110-31-S-D-A

Specifications

Contact Finish Mating

Gold

Contact Type

Male Pin

Contact Finish Post

Tin

Uzunluk

15.88mm

Row Spacing Mating

0.050 (1.27mm)

Contact Shape

Square

Contact Length Post

0.080 2.03mm

Reliability

COMMERCIAL

Plating Thickness

30μin

Yayın Yılı

2011

Gender

Male

Pcb Contact Pattern

RECTANGULAR

Housing Material

Polymer

Shrouding

Shrouded - 4 Wall

Din Conformance

NO

Additional Feature

ROHS COMPLIANT

Contact Materials

Phosphor Bronze

Terminal

Solder

Insulation Color

Black

Mounting Option1

LOCKING

Depth

5.72mm

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Max Current Rating

5A

Style

Board to Board or Cable

Current Rating Amps

2.9A per Contact

Contact Lengthmating

0.139 3.53mm

Orientation

Straight

Fastening Type

Push-Pull

Özellikler

Board Guide

Iec Conformance

NO

JESD-609 Kodu

e3

Insulation Height

0.435 11.05mm

Filter Feature

NO

Pitch Mating

0.050 1.27mm

Nominal Gerilim

275VAC

Mil Conformance

NO

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C
