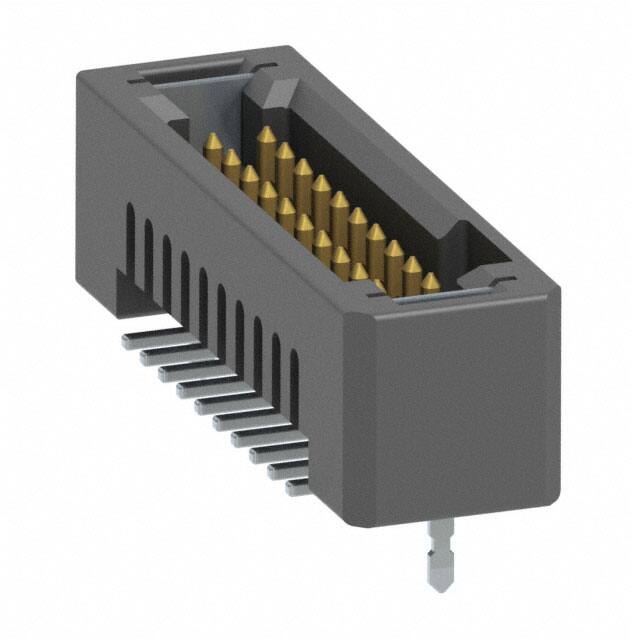

TFM-110-02-S-D-WT

Specifications

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-55°C~125°C

Contact Finish Thickness Mating

30.0μin 0.76μm

Max Voltage Rating Ac

350V

Mil Conformance

NO

Total Number Of Contacts

20

Connector Type

Header

Number Of Conductors

ONE

JESD-609 Kodu

e3

Iec Conformance

NO

Fastening Type

Push-Pull

Özellikler

Solder Retention

Orientation

Straight

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Insulation Height

0.220 5.60mm

Filter Feature

NO

Reference Standard

UL, CSA

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Mixed Contacts

NO

Pozisyon Sayısı

20

Sıra Sayısı

2

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Number Of Pcb Rows

2

Ambalaj

Tube

Montaj Tipi

Surface Mount

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Montaj

Surface Mount

Number Of Positions Loaded

All

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Gender

Male

Plating Thickness

30μin
