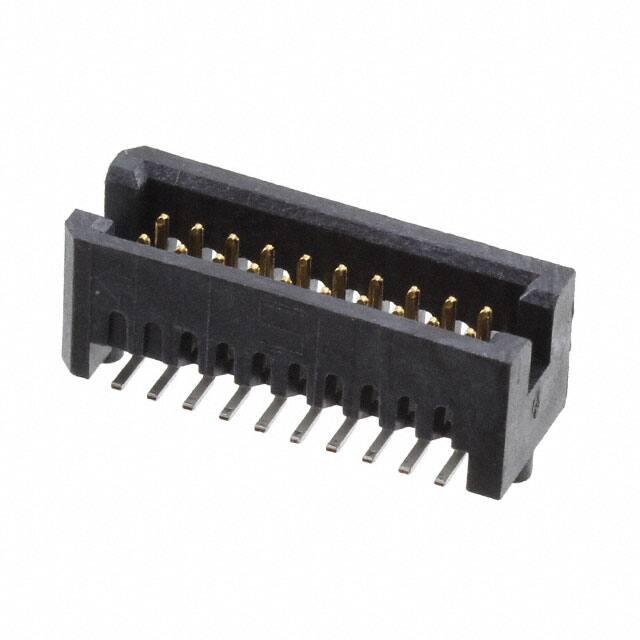

TFM-110-02-S-D-A

Specifications

Mating Contact Pitch

0.05 inch

Polarization Key

POLARIZED HOUSING

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

3 Weeks

Total Number Of Contacts

20

Connector Type

Header

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Insulation Height

0.220 5.60mm

JESD-609 Kodu

e3

Iec Conformance

NO

Özellikler

Board Guide

Fastening Type

Push-Pull

Orientation

Straight

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Mixed Contacts

NO

Reference Standard

UL, CSA

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

20

Sıra Sayısı

2

Ambalaj

Tube

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

Board Mounting Option

POSITIONING PIN

Ul Flammability Code

94V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Positions Loaded

All

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Gender

Male

Yayın Yılı

2006
