Volume pricing
- 1+ pcs$3.35
- 10+ pcs$3.16
- 100+ pcs$2.98
- 500+ pcs$2.81
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

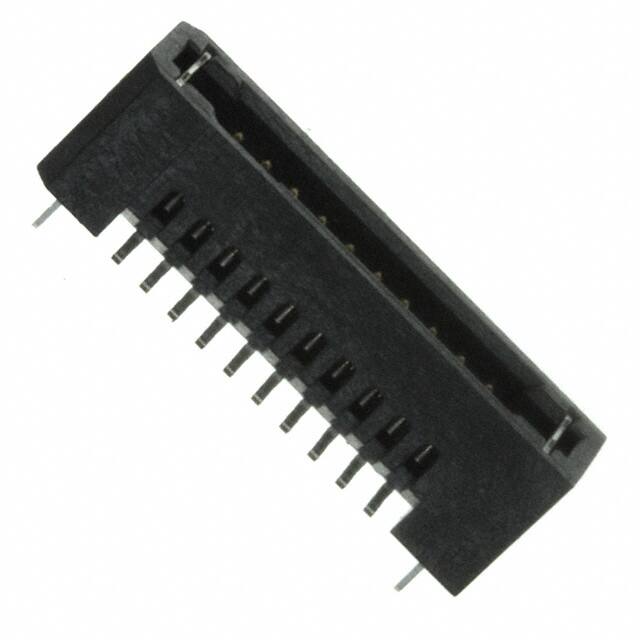

Specifications
- Gender
- Male
- Pcb Contact Pattern
- RECTANGULAR
- Housing Material
- Polymer
- Contact Shape
- Square
- Uzunluk
- 15.88mm
- Row Spacing Mating
- 0.050 (1.27mm)
- Contact Type
- Male Pin
- Contact Finish Post
- Tin
- Contact Finish Mating
- Gold
- Yayın Yılı
- 2006
- Plating Thickness
- 30μin
- Reliability
- COMMERCIAL
- Option
- GENERAL PURPOSE
- Max Current Rating
- 5A
- RoHS Durumu
- ROHS3 Compliant
- Depth
- 5.72mm
- Housing Color
- Black
- Kurşunsuz Kodu
- yes
- Contact Lengthmating
- 0.131 3.33mm
- Current Rating Amps
- 2.9A per Contact
- Style
- Board to Board or Cable
- Shrouding
- Shrouded - 4 Wall
- Din Conformance
- NO
- Terminal
- Solder
- Contact Materials
- Phosphor Bronze
- Polarization Key
- POLARIZED HOUSING
- Reach Svhc
- No SVHC
- Fabrika Tedarik Süresi
- 3 Weeks
- Mating Contact Pitch
- 0.05 inch
- Insulation Height
- 0.220 5.60mm
- Filter Feature
- NO
- Pitch Mating
- 0.050 1.27mm
- Nominal Gerilim
- 275VAC
- Iec Conformance
- NO
- JESD-609 Kodu
- e3
- Orientation
- Straight
- Fastening Type
- Push-Pull
- Connector Type
- Header
- Total Number Of Contacts
- 20
- Number Of Conductors
- ONE
