Volume pricing
- 1+ pcs$3.28
- 10+ pcs$3.10
- 100+ pcs$2.92
- 500+ pcs$2.76
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

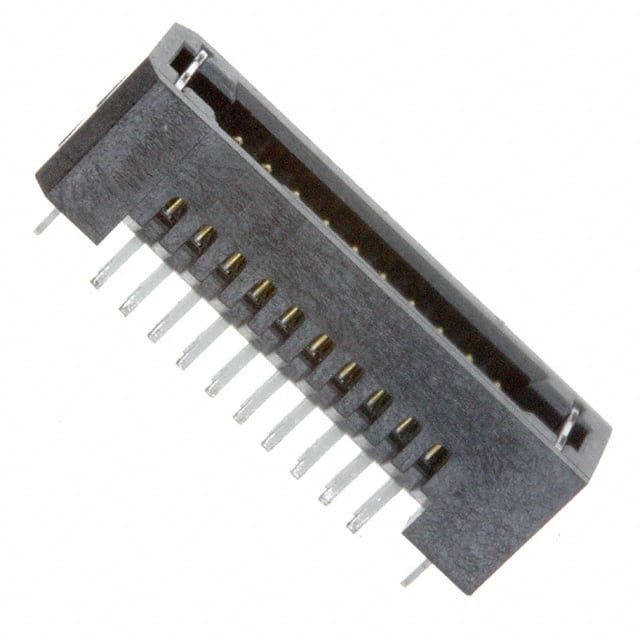

Specifications
- Depth
- 5.72mm
- RoHS Durumu
- ROHS3 Compliant
- Option
- GENERAL PURPOSE
- Max Current Rating
- 5A
- Kurşunsuz Kodu
- yes
- Housing Color
- Black
- Style
- Board to Board or Cable
- Current Rating Amps
- 2.9A per Contact
- Contact Lengthmating
- 0.131 3.33mm
- Shrouding
- Shrouded - 4 Wall
- Din Conformance
- NO
- Additional Feature
- WITH WELD TAB, ROHS COMPLIANT
- Contact Materials
- Phosphor Bronze
- Terminal
- Solder
- Gender
- Male
- Pcb Contact Pattern
- RECTANGULAR
- Housing Material
- Polymer
- Contact Finish Mating
- Gold
- Contact Type
- Male Pin
- Contact Finish Post
- Tin
- Uzunluk
- 15.88mm
- Row Spacing Mating
- 0.050 (1.27mm)
- Akım Değeri
- 5A
- Contact Shape
- Square
- Voltage Rated Ac
- 350V
- Contact Length Post
- 0.078 1.98mm
- Reliability
- COMMERCIAL
- Plating Thickness
- 30μin
- Yayın Yılı
- 2008
- Sıra Sayısı
- 2
- Pozisyon Sayısı
- 20
- Material Flammability Rating
- UL94 V-0
- Reference Standard
- UL, CSA
- Lead Pitch
- 1.27mm
- Mixed Contacts
- NO
- Seri
- Tiger Eye™ TFM
- Parça Durumu
- Active
- Number Of Positions Loaded
- All
- Montaj
- Through Hole
- Insulation Materials
- Liquid Crystal Polymer (LCP)
