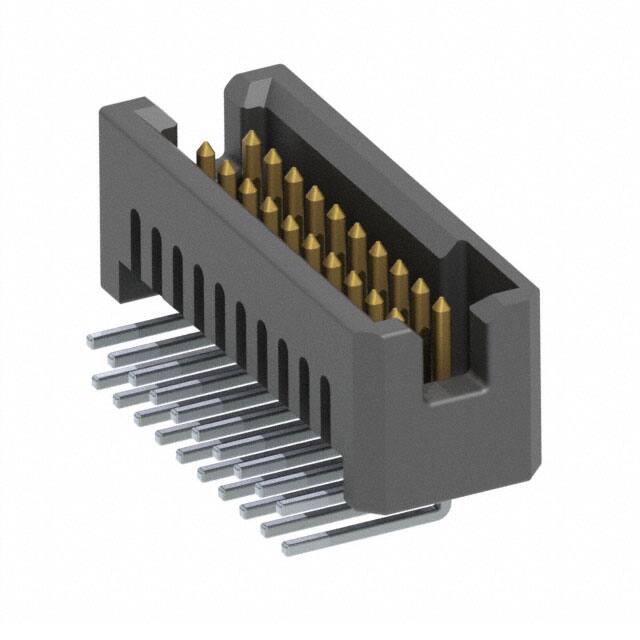

TFM-110-01-S-D-RA

Specifications

Mating Contact Pitch

0.05 inch

Fabrika Tedarik Süresi

3 Weeks

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Max Voltage Rating Ac

350V

Contact Finish Thickness Mating

30.0μin 0.76μm

Çalışma Sıcaklığı

-55°C~125°C

Mil Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE

Connector Type

Header

Fastening Type

Push-Pull

Orientation

Right Angle

Iec Conformance

NO

JESD-609 Kodu

e3

Nominal Gerilim

275VAC

Pitch Mating

0.050 1.27mm

Filter Feature

NO

Insulation Height

0.225 5.72mm

Reference Standard

UL, CSA

Mixed Contacts

NO

Parça Durumu

Active

Seri

Tiger Eye™ TFM

Sıra Sayısı

2

Pozisyon Sayısı

20

Material Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Number Of Pcb Rows

2

Montaj Tipi

Through Hole, Right Angle

Ambalaj

Tube

Montaj

Through Hole

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Housing Material

Polymer

Pcb Contact Pattern

RECTANGULAR

Gender

Male

Reliability

COMMERCIAL

Contact Length Post

0.075 1.91mm

Plating Thickness

30μin

Yayın Yılı

2011
