Volume pricing
- 1+ pcs$2.70
- 10+ pcs$2.55
- 100+ pcs$2.40
- 500+ pcs$2.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

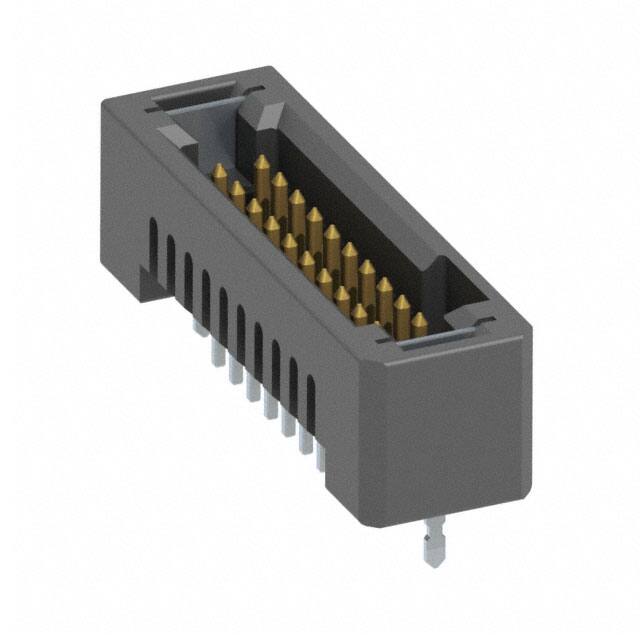

Specifications
- Contact Lengthmating
- 0.131 3.33mm
- Current Rating Amps
- 2.9A per Contact
- Style
- Board to Board or Cable
- Contact Resistance
- 15mOhm
- RoHS Durumu
- ROHS3 Compliant
- Max Current Rating
- 5A
- Option
- GENERAL PURPOSE
- Mounting Option1
- LOCKING
- Depth
- 5.72mm
- Insulation Color
- Black
- Terminal
- Solder
- Contact Materials
- Phosphor Bronze
- Additional Feature
- WITH WELD TAB, ROHS COMPLIANT
- HTS Kodu
- 8536.69.40.40
- Din Conformance
- NO
- Shrouding
- Shrouded - 4 Wall
- Housing Material
- Polymer
- Pcb Contact Pattern
- RECTANGULAR
- Gender
- Male
- Yayın Yılı
- 2011
- Reliability
- COMMERCIAL
- Contact Length Post
- 0.078 1.98mm
- Plating Thickness
- 15μin
- Row Spacing Mating
- 0.050 (1.27mm)
- Uzunluk
- 15.88mm
- Contact Shape
- Square
- Contact Finish Mating
- Gold
- Durability
- 100 Cycles
- Contact Finish Post
- Tin
- Contact Type
- Male Pin
- Mixed Contacts
- NO
- Parça Durumu
- Active
- Seri
- Tiger Eye™ TFM
- Reference Standard
- UL, CSA
- Material Flammability Rating
- UL94 V-0
- Radyasyon Dayanımı
- No
- Sıra Sayısı
- 2
- Pozisyon Sayısı
- 20
- Montaj Tipi
- Through Hole
- Ambalaj
- Tube
